Motherboard |
|
|

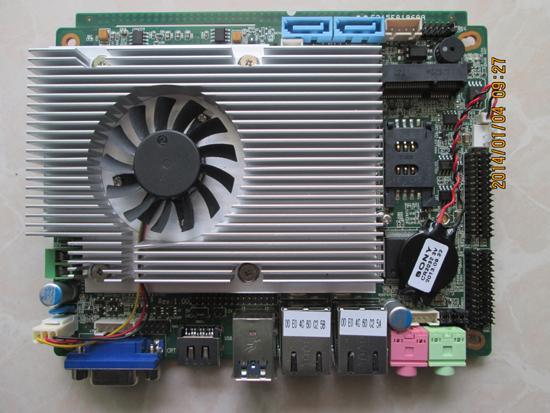

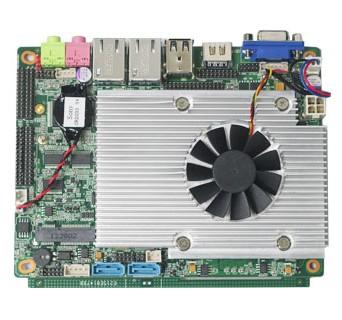

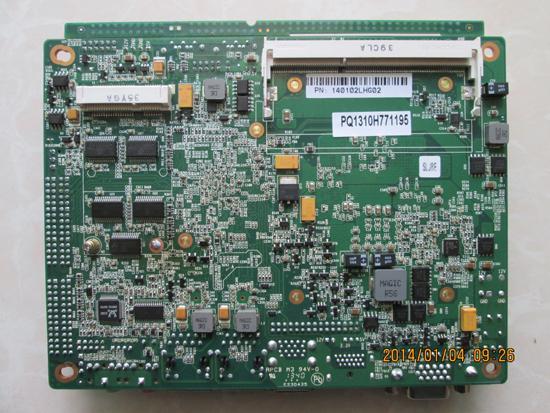

| Product name : Motherboard |
| Item : ITX-HM67-3 |
| Details : |
|
Name:
|
Motherboard(HM67-3) |
|
Spec:
|
ITX-HM67-3 |
|
Memo:
|
Intel QM67/77 based Core i3/i5/i7 CPU |
|
Class:
|
Mini-ITX Motherboards |
Online Shop: http://www.aliexpress.com/store/312429
Payment Terms: T/T,Western Union,PAYPAL,ESCROW
|
Main Features
|
|
Application Area
|
AD Player;AIO machine; Monitoring System; Car PC;HTPC;VOD; IPC; POS etc.
|
|
Form Factor
|
Mini ITX 117mm×155mm×20mm
|
|
Chipset Manufacturer
|
Intel
|
|
CPU
|
Intel Socket G2 Mobile Sandy/Ivy Bridge i7/i5/i3;default I3-2310M (3M Cache, 2.10 GHz)
|
|
Chipset
|
Intel® HM67 Express Chipset
|
|
L2 Cache
|
3MB, CPU integrated
|
|
BIOS
|
AMI EMI 32MB SMT/DIP-SPI Flash ROM
|
|
RAM
|
DDR3 1066/1333/1600MHz memory,SO-DIMM socket,maximum up to 6GB
|
|
Integrated Graphics
|
Intel HD Graphics ( requires compatible CPU with built-in GPU )
|
|
Sound
|
Onboard HD ALC662 chipset,provide 6 channels output,onboard power amplifier.
|
|
Network
|
2*Realtek RTL8111EL PCI-E Gigabit Ethernet LAN,support RTL/PXE diskless booting
|
|
Storage
|
2*SATA
|
|
LVDS
|
Support 24bit dual channel LVDS connector.Resolution maximum up to:1920*1200
|
|
USB
|
6*USB 2.0/1.1(2 external;4 expansion header)
|
|
Expansion Sockets
|
1*Mini SATA socket;1*Mini-PCIE socket for WIFI;1*SIM card slot for 3G
|
|
Rear Panel I/O
|
1*12V -DC power supply
|
|
1*HDMI
|
|
1*VGA port
|
|
2*USB 2.0/1.1 port
|
|
2*1000M RJ45 port
|
|
2*Audio I/O interfaces( Line in,Line out,Mic)
|
|
Internal I/O
|
4*USB 2.0/1.1 expansion header
|
|
2*CPU/SYS Chassis fan connectors
|
|
1*Audio I/O expansion header
|
|
6*COM expansion headers (support RS232/422/485)
|
|
1*GPIO expansion header(8 group)
|
|
1*VGA expamsion header
|
|
1*HDMI expansion header
|
|
1*Audio power amplifier
|
|
Power Interface
|
4PIN,ATX power supply
|
|
Power Consumption
|
+5V 1.5A,+12V 1.2A
|
|
Working Temperature
|
-20°C~70°C (-4°F~158°F)
|
|
Storage Temperature
|
-20°C~80°C (-4°F~176° )
|
|
Operating Humidity
|
10%~90% (non-condensing)
|
|
Advantages
|
|
1.Embedded high performance industrial motherboard. (2.0cm u, , , ltrathin)
2.DDR3 1066/1333/1600MHz memory,SO-DIMM socket maximum up to 6GB.
3.Support WIFI,3G SIM card,dual 1000M RJ45 LAN port,support Mini SATA ,more efficiency.
4.Support power booting/plug and play,Timer-power-on.
5.Support 1080P HDMI resolution maximum up to:1920*1200;Support 24bit dual channel LVDS;VGA resolution maximum up to:2048*1536.
6.Reliable, High stability, Low noise, low power consumption.Perfectly suitable for AD Player/AIO machine/IPC/VOD/Car PC/HTPC etc.
7.Certificate:CE,FCC,RoHS
|
