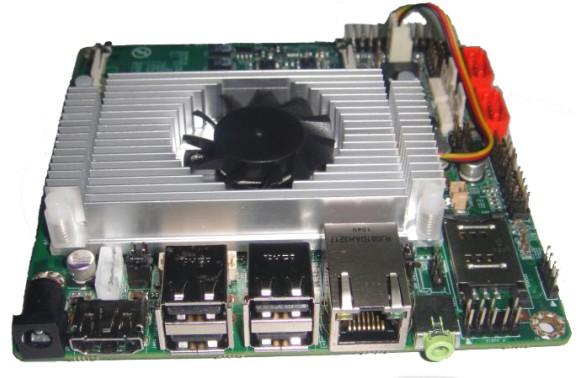

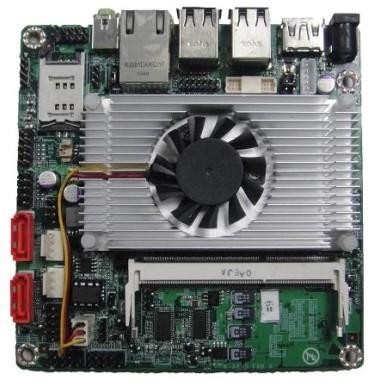

AMD ITX Motherboard |
|
|
| Product name : AMD ITX Motherboard |
| Item : ITX-A8HD |
| Details : |
|
Name:
|
AMD ITX Motherboard(ITX-A8HD) |
|
Spec:
|
ITX-A8HD |
|
Memo:
|
HDMI,24b Double 8 LVDS,VGA；3G,SIM；SPK，2*3W; |
|
Class:
|
Mini-ITX Motherboards |
Online Shop: http://www.aliexpress.com/store/312429
Payment Terms: T/T,Western Union,PAYPAL,ESCROW
Features
- AMD APU G-series, T56N processor；
- HDMI/VGA and 48b LVDS Video output
- Support HDMI/VGA/LVDS different video output
- HD decoding support VC1, H.264, MPEG4….
- 1 Mini PCIE support WIFI,3G
- 12*12cm, slimmest, 12V DC IN
|
M.B Spec
|
|
Main
|
CPU
|
AMD T56N 1.6GHz processor；
|
|
Chipset
|
AMD Fusion Handson-1
|
|
Memory
|
SO-DIMM, DDR3 800/1066/1333MHz
|
|
Up to 4GB
|
|
Bios
|
SPI AMI EFI bios
|
|
Support ACPI2.0B, APM1.2, DIM2.0, SMBIOS2.5
|
|
Display
|
Graphics
|
ATI 6200&6300 Serials HD Graphics
|
|
Port/Header
|
1x VGA Header
|
|
1x HDMI Port
|
|
1x Dual channel 8bit LVDS
|
|
LAN
|
Speed
|
10/100/1000Mbps adapting
|
|
Interface
|
1x RJ45
|
|
Audio
|
Interface
|
Rear: 1x Line-Out, 1x MIC-In
|
|
Front: Standard Front audio header
|
|
AMP Speaker header for 2W adjustment
|
|
Storage
|
SATA
|
2x SATA2 port
|
|
USB
|
Speed
|
USB2.0 480Mb/s
|
|
Port/Header
|
4x rear USB port, 2x front Standard USB Header
|
|
Other
|
COM
|
2x 2*5 COM header for RS232 mode
|
|
PCIE
|
1x Standard Mini-PCIE, with SIM socket for 3G
|
|
Power-In
|
1x DC-Jack,12v DC Input
|
|
PCB
|
spec
|
120*120mm, Green
|
|
O.S
|
Windows
|
WINXP/WIN7
|
|
other
|
Unix/Linux
|
|
Work Temp
|
T range
|
-20~60℃
|
|
H range
|
0~85%RH
|
|
|
|
|
