Board provide 1x 204 pin DDR SODIMM III slot;
The DDRIII 1066/800 MHZ memory maximum 4GB;
support VGA,HDMI,LVDS
Product features
uPlate load Intel atom N2600 / N2800 dual-core processor can choose.
uThe Intel NM10 high-speed chipset.
uSupport 1 the DDR SO DIMM III memory bank, the biggest support 2 gb.
uSupport VGA, HDMI, LVDS synchronous or asynchronous display.
uIntegrated two RTL8111E gigabit nics.
uSupport six RS232 interface (including COM2 support 232, 422, 485 mode).
uSupport two MINI - PCIEx1 slot, can use SSD/wireless network card.
u1 Realtek ALC662 6 channel high fidelity audio, support six USB2.0 interface.
Product specifications
System
a) C P U plate load Intel atom N2600 / N2800 dual-core processor can choose.
b) Memory 1 * 204 needle DDR3 1066/1333/800 MHZ SO DIMM memory, the biggest support 4 gb
c) Chipset Intel ® NM10 high-speed chipset
d) BIOS AMI 16 MB Flash ROM
e) ATA/IDE 1 * SATA interface
f) Watchdog 256 level, the programmable 0-255 seconds/points, system reset

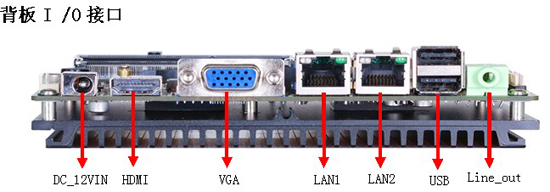

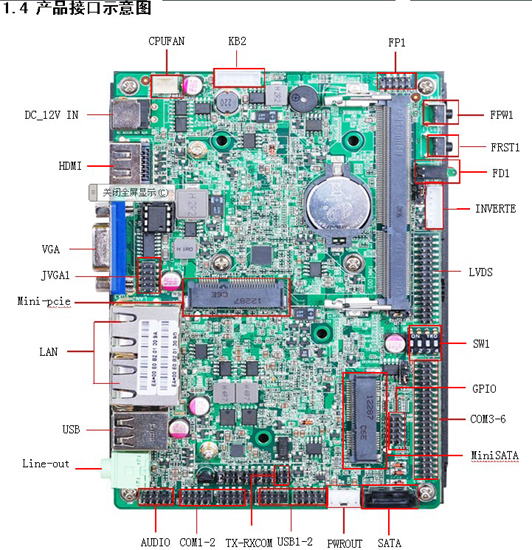

I / O
lCom 6 * RS232 interface, including COM2 support 232, 422, 485 model
lUSB interface 6 * USB2.0 interface
lThe keyboard/mouse 1 * PS / 2 keyboard mouse interface
lAUDIO 1 * standard AUDIO interface support Line out, also provide 1 group
l2 x5 extraction 8 audio interface.
lExpansion bus 1 * MINI - PCIE slot 1 * MINISATA slot
Audio
Chip/interface Realtek ALC662 support MIC and Line out
Display
Video card integrated Intel GMA3650 display controller
Display interface 1 * VGA 1 * LVDS 1 * HDMI, LVDS support single 24 bit
Internet
Network chip 2 * RT8111E gigabit nic, support network wake up, PXE function And double channel 24 bit
Structure and environment
power type DC12V
Working temperature - 10 °C to 60 °C
Work humidity 0-95% relative humidity, no condensation
Size 148 mm x 102 mm
