Name:
|

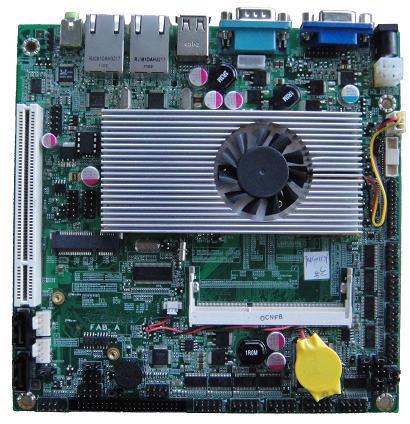

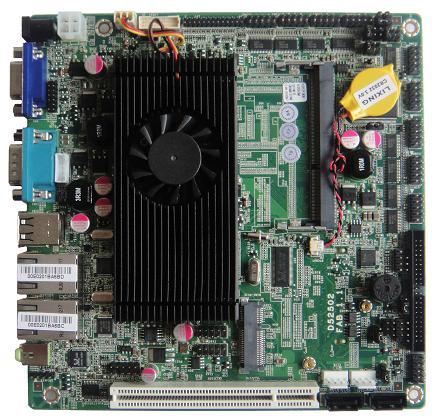

Mini-ITX Motherboard(ITX-D53EM) |
|
Spec:
|
ITX-D53EM |
|
Memo:
|
Intel Pinetrail D525,VGA/LVDS,Dual LAN,Mini PCIE |
|
Class:
|
Mini-ITX Motherboards |
Online Shop: http://www.aliexpress.com/store/312429
Payment Terms: T/T,Western Union,PAYPAL,ESCROW
Features
- Intel ATOM Pinetril D525 processor
- VGA/18b LVDS Video output
- Support VGA/LVDS different video output
- Dual LAN support, Mini PCIE support WIFI
- 10 COM and 1 LPT onboard suitable for thin client, POS…
- 170*170*22mm, slimmest, 12V DC IN
|
M.B Spec
|
|
Main
|
CPU
|
Intel D525 1.8GHz
|
|
Chipset
|
Intel ICH8M chipset
|
|
Memory
|
SO-DIMM, DDR3 800, compatible with DDR3 1066/1333
|
|
Up to 4GB
|
|
Bios
|
SPI Phoenix AMI EFI bios
|
|
Support ACPI2.0B, APM1.2, DIM2.0, SMBIOS2.5
|
|
Display
|
Graphics
|
Intel GMA3150, 400MHz
|
|
Port/Header
|
1x VGA Port, 1x VGA header
|
|
1x Single channel 6bit LVDS
|
|
LAN
|
Speed
|
10/100/1000Mbps adapting
|
|
Interface
|
2x RJ45
|
|
Audio
|
Interface
|
Rear: 1x Line-Out
|
|
Front: Standard Front audio header
|
|
AMP Speaker header for 2W
|
|
Storage
|
SATA
|
2x SATA2 port
|
|
IDE
|
1x44pin IDE slot
|
|
CF
|
1x CF slot
|
|
USB
|
Speed
|
USB2.0 480Mb/s
|
|
Port/Header
|
2x rear USB port, 2x front Standard USB Header
|
|
Other
|
PS/2
|
1x 2*4 PS/2 header
|
|
COM
|
10x 2*5 COM header for RS232 mode, and also COM2 support RS485/422, COM3 support TTL mode, COM4~6 support 5V/12V
|
|
PCI
|
1x Standard Mini-PCIE
|
|
1x Standard PCI slot
|
|
GPIO
|
4 channels IN/OUT programmable
|
|
Power-In
|
1x DC-Jack, 1x ATX 2*2 4pin socket,12v DC Input
|
|
PCB
|
spec
|
170*170mm, Green
|
|
O.S
|
Windows
|
WINXP/WIN7
|
|
other
|
Unix/Linux
|
|
Work Temp
|
T range
|
-20~60℃
|
|
H range
|
0~85%RH
|
|
|
|
|
