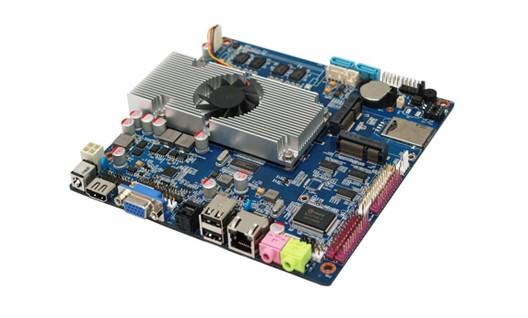

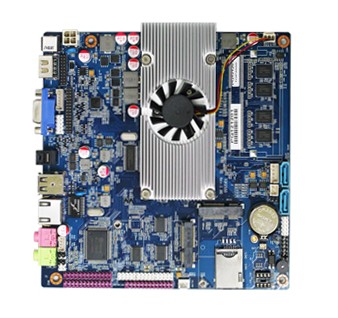

Mini-ITX Mainboard |
|
|
| Product name : Mini-ITX Mainboard |
| Item : ITX-TOP2550 |
| Details : |
|
Name:
|
Mini ITX Mainboard(ITX-TOP2550) |
|
Spec:
|
ITX-TOP2550 |
|
Memo:
|
Onboard 1333MHz DDR3 2GB |
|
Class:
|
Mini-ITX Motherboards |
Online Shop: http://www.aliexpress.com/store/312429
Payment Terms: T/T,Western Union,PAYPAL,ESCROW
|
|
Main Features
|
|
Application Area
|
AD Player;ultrathin AIO machine; Monitoring System; HTPC;VOD; IPC; POS etc.
|
|
Form Factor
|
Mini ITX 170mm×170mm
|
|
Chipset Manufacturer
|
Intel
|
|
CPU
|
Intel ® Cedar Trail-D Atom D2550 dual-core (32nm,1.86GHz,1MB L2 cache)
|
|
Chipset
|
Intel® Atom D2550+NM10 express chipset
|
|
Integrated Graphics
|
Integrated Intel GMA3650 Graphics Core( shared memory 128/224MB)
|
|
Memory
|
Onboard 1333MHz DDR3 2GB;DDR3 SODIMM socket maximum up to 4GB (optional)
|
|
Expansion Socket
|
1*mini PCIE for WIFI/3G;1* mini PCIE for mSATA
|
|
Slots
|
1*SIM card slot
|
|
Storage
|
2*SATAII;1*mSATA
|
|
Audio
|
Onboard HD ALC662 chipset(Line-out,Mic-in);onboard 3W audio power amplifier
|
|
Network
|
1*RTL8111E-VL 10/100/1000Mbps Gigabit Ethernet LAN
|
|
USB
|
6*USB 2.0/1.1(2 external;4 internal)
|
|
LVDS
|
Onboard 18/24bit Single Channel LVDS connector
|
|
Watchdog
|
Level 255 timer
|
|
Super I/O
|
W83627DHG
|
|
BIOS
|
EFI BIOS
|
|
Rear Panel I/O
|
2*USB 2.0/1.1 ports
|
|
1* DC-12V power supply
|
|
1* RJ45 port
|
|
1* audio I/O port
|
|
1*SPDIF
|
|
1*HDMI
|
|
1*VGA
|
|
Internal I/O
|
4*USB 2.0 ports
|
|
CPU/SYS fan connectors
|
|
4-pin ATX Power connector
|
|
6*COM expansion header(4*RS-232 /2*RS-485)
|
|
1*Audio expansion header
|
|
1*HDMI expansion header
|
|
1*VGA expansion header
|
|
1*LPT expansion header
|
|
1*GPIO (8 bit)
|
|
Power Consumption
|
13W
|
|
Working Temperature
|
-20°C~70°C (-4°F~158°F)
|
|
Storage Temperature
|
-20°C~80°C (-4°F~176° )
|
|
Operating Humidity
|
10%~90% (non-condensing)
|
|
Advantages
|
|
1.Embedded high performance industrial motherboard.
2.Intel ® Cedar Trail-D Atom D2550 dual-core CPU,onboard DDR3 2GB memory,maximum up to 6GB.
3.Support WIFI,3G SIM card,support Mini SATA ,more efficiency.
4.Support power booting/plug and play,Timer-power-on.
5.Support 18/24bit single ch LVDS output.VGA and LVDS asynchronous with show supported.
6.Reliable, High stability, Low noise, low power consumption.Perfe, , c, tly suitable for AD Player/AIO machine
/IPC/VOD/Car PC/HTPC etc.
7.Certificate:CE,FCC,RoHS
|
