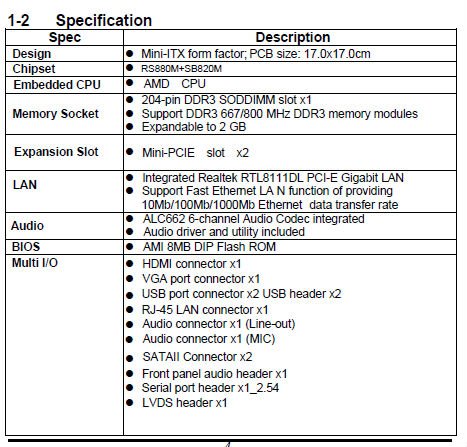

System:
Chipset: Amd RS880M + SB820M express chipset
Processor: Amd N330 dual-core 2.3G processor board
Front side bus: 2.5GT/S
System memory: 1 DDR3 notebook memory slot, maximum support to 4G
BIOS:AMI BIOS, support call starting function
ACPI: support ACPI power management

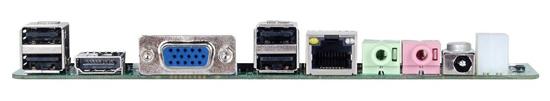

I/O interface:
MinipciE interface: 2 PCIEx1 support WIFI, solid state disk
SATA:2 SATAIII, support 6GB/S and downwardly compatible
Serial port: 2 port COM, COM1/2:RS-232 mode ( board pin )
USB interface: 8 USB2.0 ports ( 4 on the rear panel, the 4 board pin )
Network interface: 1 RTL8111E 10/100/1000M card, support diskless RPL or PXE guidance, support WOL
Display:
ATI HD4200 ( enjoy smooth high-definition playback, support for DirectX11, OpenGL4.0, OpenCL1.1, UVD3 )
Display interface: VGA interface, and the expansion of VGA output interface ( 2*5 row seat is connected with the decoding board )
The HDMI interface, and the expansion of HDMI output interface ( 2*8 row seat )
LVDS interface ( single 6 double 6 single 8 Dual 8 LCD screen )
VGA+HDMI or VGA+LVDS asynchronous double display
Sound card:
ALC662 HD sound card
Line out, MIC
Provide front audio header
