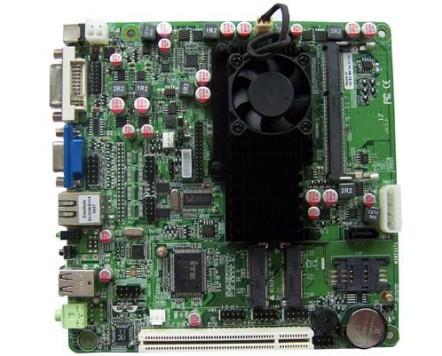

MINI-ITX Motherboard |
|
|
| Product name : MINI-ITX Motherboard |
| Item : ITX-i2556 |
| Details : |
|
Name:
|
MINI-ITX Motherboard(ITX-i2556) |
|
Spec:
|
ITX-i2556 |
|
Memo:
|
17*17cm,6com,1 lan,VGA+DVI,DC,MSATA |
|
Class:
|
Mini-ITX Motherboards |
COM1 and COM2 is RS232,Option COM3-6.
Online Shop: http://www.aliexpress.com/store/312429
Payment Terms: T/T,Western Union,PAYPAL,ESCROW
I TX -D2550 Board
supports Intel ATOM Processor
with POWER DC
/1*RT8105E LAN/1*SATA/2*COM or 6*COM / 1*DDR3
SODIMM/1*SIM/1*MINI-PCIE/1*MINI-SATA
mainboard, main board, main boards, mother board, mother boards, motherboard, motherboards,
ITX Motherboard, computer board, Embedded Motherboard, computer, computer parts, power board,
control board, computer components, computer products, embedded computer, computer hardware,
computer spare parts, desk top
mini itx boards,mini itx motherboards,motherboard micro itx,mini itx mainboard,mini itx board,
itx motherboards,mini itx motherboard,motherboard mini itx
|
CPU
|
INTEL Atom Dual-Core Processor D2700 CPU (32nm,2.13GHz,1024MB L2 Cache)
INTEL Atom Dual-Core Processor D2550 CPU (32nm,1.86GHz,1024MB L2 Cache)
INTEL Atom Singlel-Core Processor D2500 CPU (32nm, 1.80GHz,512KB L2 Cache)
|
|
Chipset
|
INTEL Atom D2700/D2550/D2500 + NM10
|
|
Memory
|
1 * 204-pin DIMM Sockets for un-buffered Single Channel DDR3 800/1066/1333 SDRAM up to 2 GB
|
|
Expansion Slots
|
1 * PCI slot, 2* Mini PCI-E socket ,1*SIM
|
|
Storage
|
1* Serial ATA2 3Gb/s connectors

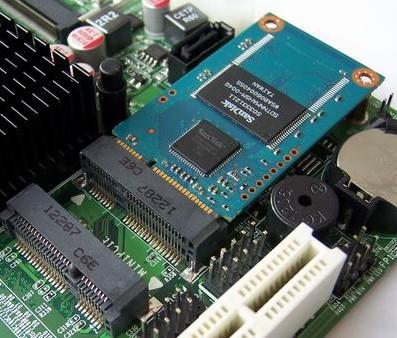

1 * Mini-SATA connector
|
|
Audio
|
Realtek ALC662 6-Channel HD Audio CODEC
|
|
Ethernet LAN
|
1*RTL8105E-VL LAN
|
|
LVDS
|
Onboard 24-bit single channel LVDS connector
|
|
USB
|
Embedded 8 * USB 2.0/1.1
|
|
Special Features
|
Intel Cedarview Processor
Support DC FAN
Support CPU Smart Fan
|
|

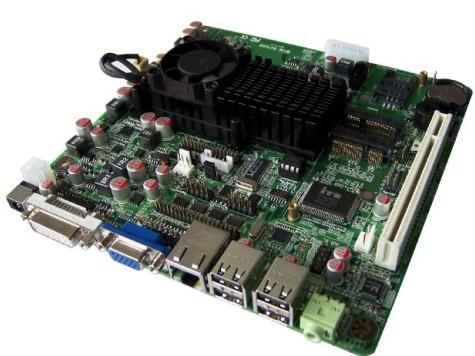

Rear Panel I/O
|
1 * DC 12V IN port
1 * DVI port
1 * VGA port
1 * RJ-45 port
4 * USB 2.0/1.1 ports
1 * Audio I/O ports (mic and line-out )
|
|
Internal I/O
|
3 USB 2.0 ports
1 * 12V DC 4pin in
3* NB / Chassis Fan connectors;
1 * VGA header 2*6 2.54mm
1 * DVI header 2*8 2.0mm
1 * AUDIO header
1* COM3-6(RS232) connector

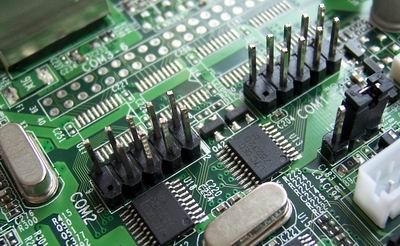

2* COM(RS232) connector (com1 and com2)
1 * MINI PCI-E connector
1 * MINI_SATA connector
|
|
BIOS
|
AMI 16MB DPI Flash ROM
|
|
Functional
|
ATM, Automation, medical Equipment, Security, Networking, POS, General Application,
Gaming Machine, Transportation
|
|
Packing
|
Color Box Dimension200(W) x 200(D) x 70(H)mm
|
|
Certificate
|
CE, FCC, RoHS
|
|
Temperature
|
Operating within 0-40 centigrade (Suggest to use system FAN)
Storage within -20-85 centigrade
|
|
Form Factor
|
Mini ITX Form Factor(17cmx17cm)
|
|
 |
