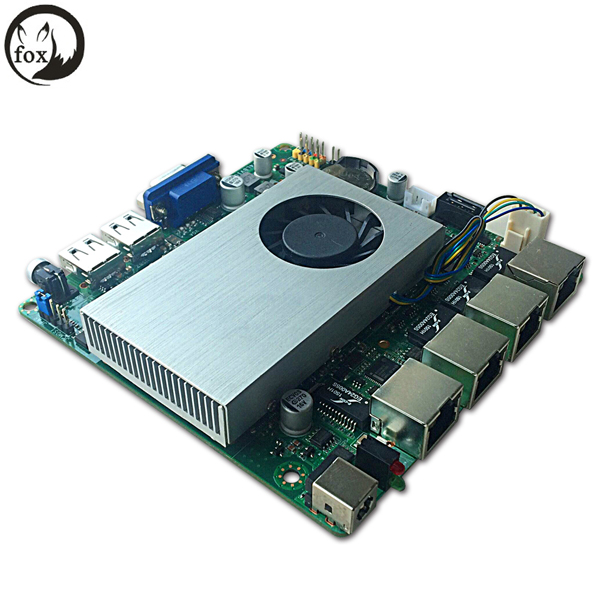

Motherboard specifications
— Motherboard type structure
Size:120mm x 120mm
— Processing (CPU)
Support Intel J1900 quad core 2.0GHz processor
— Graphics Display
Integrated Intel HD Graphics core Graphics
Provide VGA
— Chipset
J1900(single chip)
— System Memory
1 DDR3 memory slot
Memory support 2 gb or more
Support 1333/1066MHz
Support DDR3/DDR3L(low voltage 1.35V)memory
Max Support 8GB memory
— BIOS
AMIBIOS
32Mbit flash
— Front I/O interface
1 fan connector:connect the CPU
1 SATA interface
— Rear I/O interface
1 power switch
1 VGA interface
1 set of USB2.0/1 set of LED Light
4 Nic port

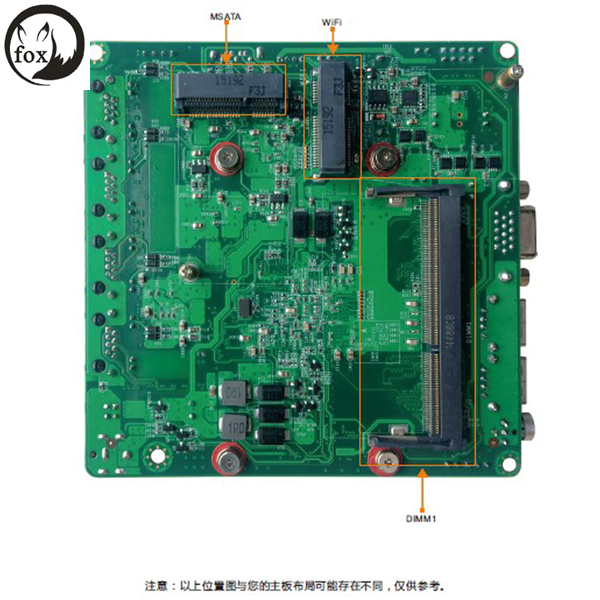

— expansion card slot
1 DDR3 memory slot
1 MSATA slot
1 WiFi slot
|
— Onboard LAN
4 LAN Intel WG82583
10/100/1000M EtherNet
— Operating system
Windows7, Windows8,
Linux,
— System monitoring and management
System power management
Management of temperature, voltage management
— Working environment humidity
0% ~ 95% (relative humidity, no condensation)
— Working environment temperature
-10°C ~ 55°C
— unique properties
No
|
