Firewall Appliance Motherboard |
|
|
| Product name : Firewall Appliance Motherboard |
| Item : ITX-R19F VER:1.1 |
| Details : |

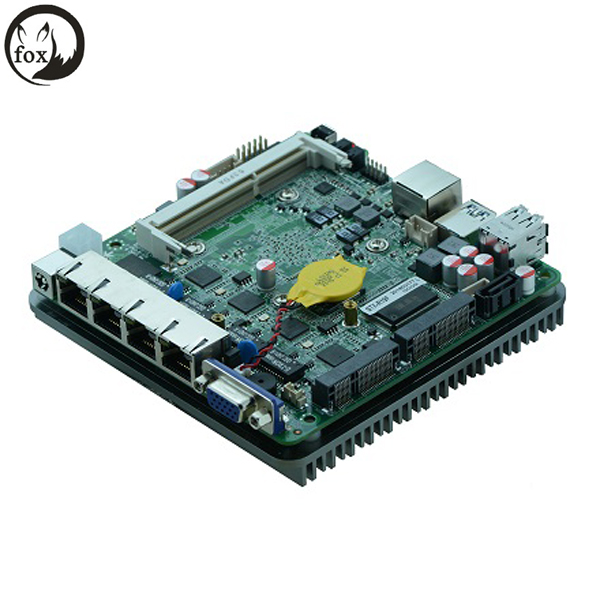

ITX-R19F VER:1.1
The integrated Intel J1900 2.0GHz quad core processor or dual core processor J1800 2.41GHz
The Intel Bay trail based on SOC platform
The 1*SO DDRIII slot, only 1600/1333MHz DDR3L/1.35V memory support, maximum support 8GB
The integrated Intel HD Graphics graphics core
The 4* Intel WG82583V Gigabit Ethernet chip, support WOL function /PXE
The 3*USB2.0 interface, 1*USB3.0 interface, 1*RS232 serial port
|
No.
|
Model No.
|
CPU
|
frequency
|
Memory
|
VGA
|
LAN
|
eMMC
|
USB2.0
|
USB3.0
|
COM
|
Power
|
|
1
|
ITX-R19F VER:1.1
|
J1900
|
2.0G
|
1*SODDR3L
|
1
|
4*IntelWG82583V
|
NC
|
3
|
1
|
1
|
DC12V
|
|
2
|
ITX-R18F VER:1.1
|
J1800
|
2.41G
|
1*SODDR3L
|
1
|
4*IntelWG82583V
|
NC
|
3
|
1
|
1
|
DC12V
|
|
Model NO.
|
ITX-R19F VER:1.1
|
|
CPU
|
Integrated Intel® J1900 Quad-Core processor 2.0GHz or J1800 Dual core processor 2.41GHz
|
|
Chipset
|
Intel® Bay trail SOC
|
|
Memory
|
1*SO DDRIII,Only support 1600/1333MHz DDR3L/1.35V memory,max. Up to 8GB
|
|
Graphics
|
Integrated Intel®HD Graphics
|
|
|
1*VGA
|
|
LAN
|
4* Intel WG82583V 10/100/1000Mbps Ethernet,Support Wake-on-LAN/PXE
|
|
Storage
|
1 SATA2.0 hard disk interface,transfer rate up to 3Gbps
|
|
|
1* eMMC Embedded memory chips(baytrail-I CPU Support eMMC, J1900/1800 Not supported)
|
|
Audio
|
N/A
|
|
Expansion slots
|
1* MSATA Support SSD,SSD transfer rate up to 3Gbps
|
|
Front panel I/O
|
1* CISCO standard definition RS232 COM
|
|
|
2* USB 2.0
|
|
|
1* USB 3.0
|
|
|
1* power light
|
|
|
1* hard drive light
|
|
|
1* power switch
|
|

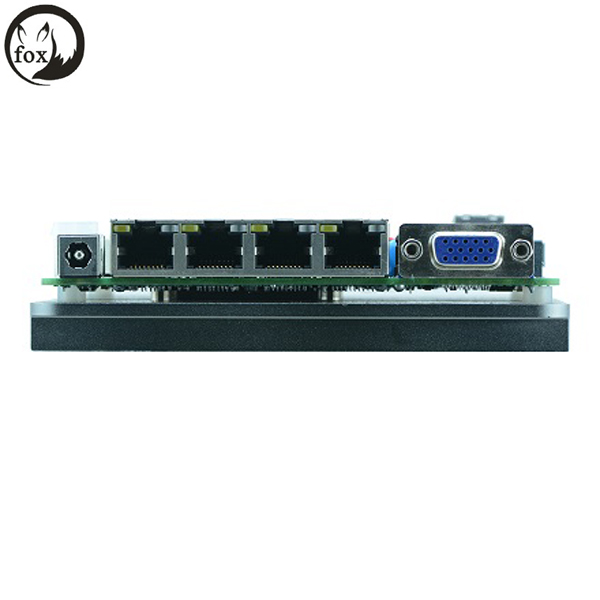

Rear I/O
|
4* RJ-45 Gigabit Ethernet network interface
|
|
|
1* VGA
|
|
|
1* 12V DC IN Jack
|
|
Internal I/O
|
1* USB 2.0 1* 4Pin
|
|
|
1* PS/2 1*6Pin
|
|
|
1* FP1(2*5pin Front panel buttons and LED connected)
|
|
|
1* hard disk power supply interface 4Pin
|
|
|
1* 4pin ATX Power Interface （Do 12V Input and output power interface)）
|
|
|
1* GPIO
|
|
Fan interface
|
No fan cooling design, set aside CPU 1*3pin intelligent fan interface
|
|
GPIO
|
Support 4 input and output GPIO
|
|
BIOS
|
64Mb Flash ROM
|
|
Watchdog
|
Support hardware reset function (L256, 0~255 seconds)
|
|
Power Input
|
DC_12V
|
|
Operating Temp.
|
-10℃～60℃
|
|
Storage Temp.
|
-20℃～70℃
|
|
Humidity
|
5%-95% (relative humidity; non-condensing)
|
|
Dimension
|
120mm x 120mm
|
|
 |
