ITX-M9F-B Ver:1.1 Provide 4*Intel 82574L Gigabit Ethernet,Supporting a group BYPASS Function(CPU:J1900）。
ITX-M9F Ver:1.1 Provide 4*Intel 82583V Gigabit Ethernet,Not supported BYPSS Function(CPU:J1900)。
ITX-M8F Ver:1.1 Provide 4*Intel 82583V Gigabit Ethernet,Not supported BYPSS Function(CPU:J1800)。
Server Motherboard fanless, J1900 4 ethernet ports server motherboard ,nano itx server mainboard
Min.Order Quantity:1 Piece/Pieces
Supply Ability:2000 Piece/Pieces per Month
Port:shenzhen
Payment Terms:T/T,Western Union,Paypal/Escrow
Packaging & Delivery
| Packaging Details: |
Netural Carton Box |
| Delivery Detail: |
As usual, 2 days for sample,TBA for bulk order |
4 Ethernet Port Firewall Motherboard / Server Mainboard OEM
Fanless/ 2.5' HDD/bypass support Intel J1900 Bay trail firewall Motherboard
with / USB3.0 4 ethernet ports motherboard OEM avaiable
|
Model No.
|
ITX-M9F VER:1.1
|
|
Processor
|
Integrates Intel® Celeron Quad Core J190022nm processor 2.0GHz, compatible with Intel® Bay Trail -I/M/D series CPU
|
|
Chipset
|
Intel® Bay trail SOC platform, CPU integrates chipset
|
|
Memory
|
1* DDR3 SODIMM,supports 1333/1066 MHz , Max. 8GB
|
|
Graphics
|
Intel® HD Graphics
|
|
Expansion Slot
|
1* mSATA slot
|
|
|
1* Mini-PCIE slot (supports WIFI / 3G module)
|
|
Ethernet
|
4*Intel 82583V 10/100/1000 Mbps RJ45 interface, supports Wake-On-LAN
|
|
|
Supports 2 pair of BYPASS
|
|
Storage
|
1* 2.5’ HDD Space,supports HDD inboard
1* SATA (alternative to 2.5’ hard disk )
|
|
|
1* mSATA slot (supports SSD /USB WIFI)
|
|

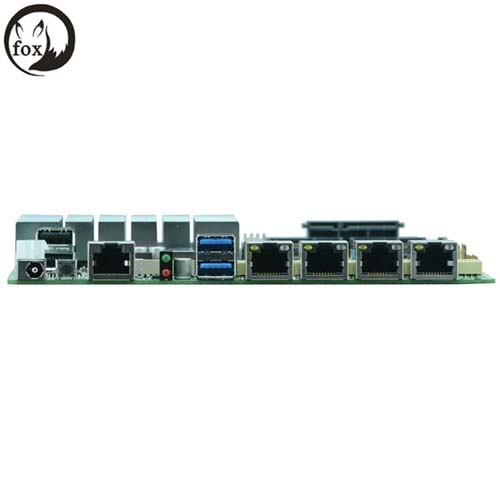

Rear I /O
|
1* 12V~19V DC JACK input
|
|
|
1* Power switch
|
|
|
1* COM CISCO standard interface
|
|
|
1* LED1(POWER LED/HDD LED)
|
|
|
2* USB(1*USB2.0 ,1*USB3.0)
|
|
|
4* RJ-45 connector
|
|
Internal I/O Connector
|
1* VGA (1*12pin)
|
|
|
1* LAN LED(2*8pin)
|
|
|
1* COM
|
|
|
2* USB 2.0
|
|
|
1* FP1 header(2*5pin Front panel buttons and indicator connector)
|
|
|
1* ATX 4PIN power connector (for 12V~19V input/output)
1* aviation connector 2PIN(for 12V~19V input/output)
|
|
|
1* PS/2 KB & MS Connector
|
|
|
1* SATA PWR Connector
|
|
|
1* SIM slot
|
|
Fan Connector
|
1* CPU Fan , 1* system Fan connector
|
|
GPIO
|
4-bit input/output
|
|
BIOS
|
AMI 32Mb Flash ROM
|
|
Watchdog Timer
|
System reset ,Programmable L256 , 0 ~ 255 sec/min
|
|
Power Type
|
Single voltage 12V~19V DC Input
|
|
Operating Temp.
|
-10°C~ 60°C
|
|
No-Operating Temp.
|
-20°C~ 70°C
|
|
Humidity
|
5-95% (relative humidity; non-condensing)
|
|
Dimension
|
170mm x 170mm
|
Factory Outlet Firewall Motherboards.
