Name:
|

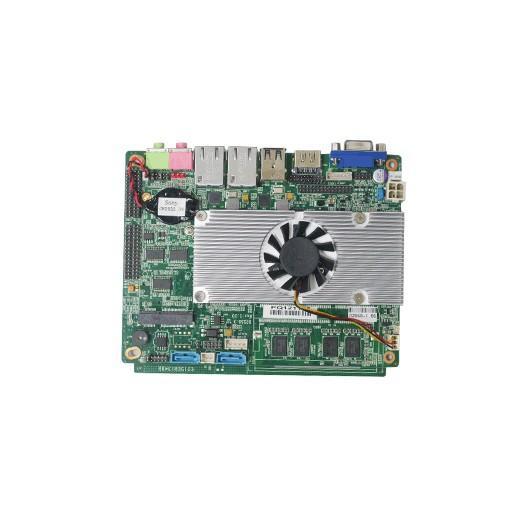

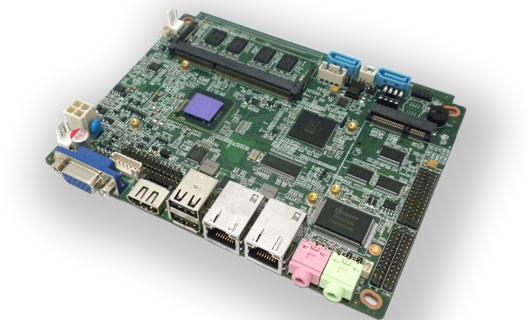

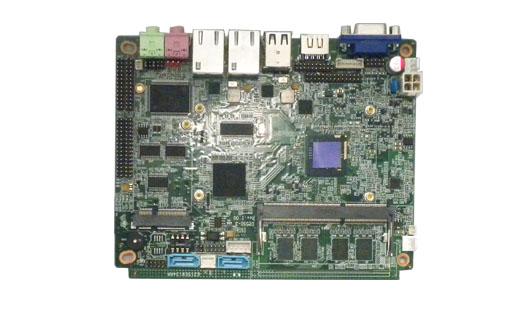

Embedded motherboard(ITX-D2550-3) |
|
Spec:
|
ITX-D2550-3 |
|
Memo:
|
|
|
Class:
|
Mini-ITX Motherboards |
Online Shop: http://www.aliexpress.com/store/312429
Payment Terms: T/T,Western Union,PAYPAL,ESCROW
|
CPU
|
Intel Atom Processor D2550
|
|
Chipset
|
Intel Atom D2550+NM10 chipest
|
|
Build-in Intel GMA3650 Graphics Core(DVMT Max 384MB)
|
|
Memory
|
Integration HY DDR3 2GB
|
|
Expansion
|
1 x MINI PCI E 1x MINI SATA
|
|
Slots
|
1 x SIM card
|
|
Storage
|
2 x sata 1 x ide
|
|
Audio
|
Realte Alc662 hd Audio Code with 6-Channel
|
|
Ethernte LAN
|
2x Realtek RTL8111EL
|
|
USB
|
Embedded 6x USB 2.0/1.1
|
|
Features
|
Support CPU Smart FAN DC FAN
|
|
LVDS
|
Onboard 18-bit Single Channel LVDS connector
|
|
Rear Panel I/O
|
2 x USB 2.0/1.1 ports
|
|
1 x DC 12V connector
|
|
2 x RJ45 port
|
|
1 x audio I/O port
|
|
1 xVGA
|
|
Internal I/O
|
4xUSB 2.0 ports
|
|
CPU/SYS Chassis fan connectors
|
|
2X2-pin ATX Power connector
|
|
6XCOM header(COM3 for RS-232/422/485)
|
|
1XAUDIO -INheader
|
|
1XGPIO 1XVGA2 1XHDMI2
|
|
BIOS
|
AMI EMI 16MB SMT/DIP-SPI Flash ROM
|
|
Functional
|
ATM Automation Medical Epuipment Security Networking
POS Car pc.One computer, Advertising machine
General Application ,Transportation, Financial Application
|
|
Packing
|
Color Box Dimension:220(W)x200(D)x70(H)MM
|
|
Cases Gross Weight:10KGS
|
|
Caese Net Weight:18KGS
|
|
30 PCS/Cases Case size:600(L)x400(W)x190(H)MM
|
|
Temperature
|
Operating within 0~60 centiguade
|
|
|
Storage within -20~85 centigrade
|
|
Form Factou
|
Mint itx Form Factor(117mm x 155mmx20mm)
|
