Name:
|

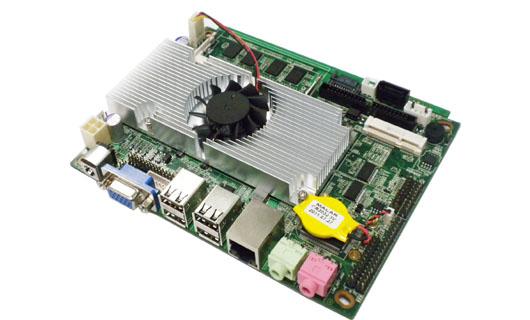

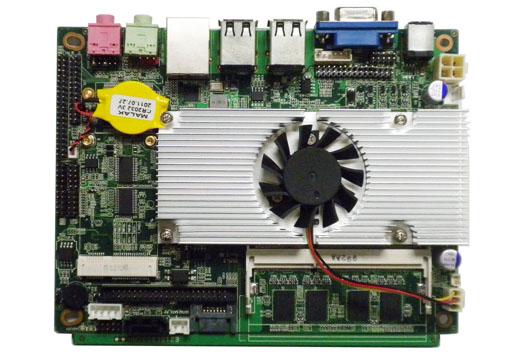

Embedded motherboard(ITX-D525-3) |
|
Spec:
|
ITX-D525-3 |
|
Memo:
|
|
|
Class:
|
Mini-ITX Motherboards |
Online Shop: http://www.aliexpress.com/store/312429
Payment Terms: T/T,Western Union,PAYPAL,ESCROW
1.Intel Atom D525 Motherboard
2.Intel Atom D525 + ICH8 Chipset
3.Intel GMA 3150
4.Ultra-thin interface
5.3.5inch 11.5*15
|
CPU
|
INTEL ATOM D525(Dual Core 1.8G,
512KB Cache Memory,45NM BGA)
|
|
RAM
|
Onboard 1333 DDR3 2GB
With SODIMM Sockets,Supporting 4GB
|
|
Chipset
|
Atom D525 + ICH8 High-speed chipset
|
|
Graphics Card Type
|
Intel GMA 3150
|
|
Audio card
|
Realtek ALC662 6 sound channelhigh fidelity
|
|
Network Card
|
1 * Realtek RTL8111EL PCI-E
|
|
Expansion Slot
|
1 * Mini PCI-SATA
1 * Mini PCI-E 1*SIM
2*SATA 1X44P IDE
|
|
Onboard LVDS
Ports
|
Onboard 18 Bit LVDS Port
|
|
Rear Panel
I/O Ports
|
1 *12V-DC,
1 * VGA,
4 * USB 2.0/1.1,
1*1000M RJ45 ,
2 * Audio I / O
|
|
Built In
I/O Ports
|
1*30 needles LVDS,
6 * RS232,
1 * GPIO,
1*VGA,
1*LPT,
1 * AUDIO
|
|
BIOS
|
Award 8MB DIP Flash ROM
|
|
Weight
|
0.4KG
|
|
Power Supply
|
DC Power Jack +12V DC-In
|
|
Power Consumption
|
+5V 0.5A,+12V 1.0A
|
|
Working Temperature
|
-20°C-70°C (-4°F-158°F)
|
|
Relative Humidity(RH)
|
10%-90%(non-condensing)
|
|
Size
|
Mini ITX Form Factor(11.5cm*15.5cm) 3.5inch
|
Features and Advantages:
1.POS KOP Tantalum capacitor design
2.Onboard DDR3/2GB RAM
3.Ultra-thin interface
4.Resume By Alarm,Automatic Startup When the power
5.Support 18 Bit LVDS Monitor
6.Support 3G SIM Card,Mini PCI DOM Running Faster
7.Support RTL and PXE Diskless Booting
8.Support VGA and LVDS Double Screen Display
9.Smallest Design 3.5inch,11.5cm*15.5cm(L*W)
