Name:
|
Embedded motherboard(ITX-N550-3) |
|
Spec:
|
ITX-N550-3 |
|
Memo:
|
|
|
Class:
|
Mini-ITX Motherboards |
Online Shop: http://www.aliexpress.com/store/312429
Payment Terms: T/T,Western Union,PAYPAL,ESCROW
mini itx motherboard VGA 3G/WIFI
1.N550 dual core 1.5GHz;18bit LVDS
2.onboard DDR3 2GB
3.3.5inch ultrathin
4.mSATA;6*COM

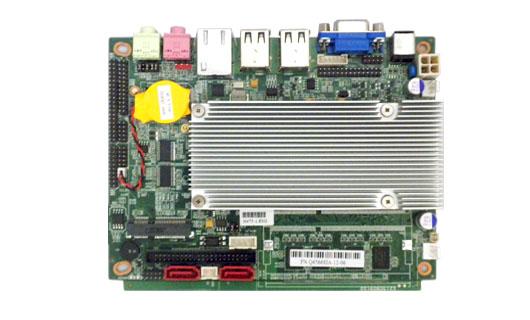

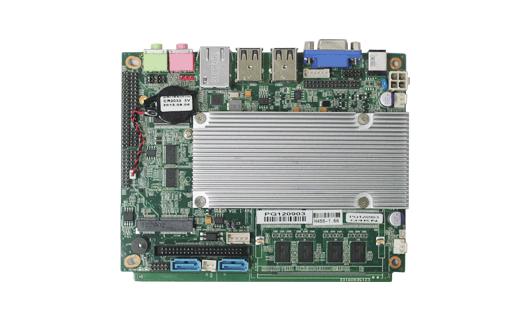

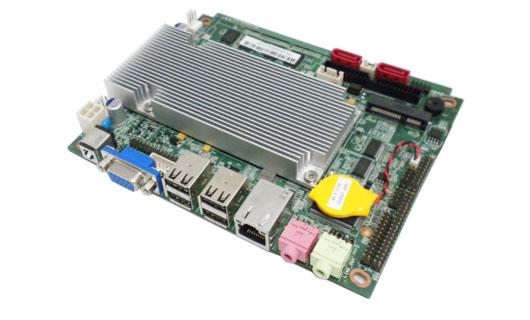

Atom N550 dual-core CPU fanless mini itx motherboard with wifi/3G LVDS
Advantage:
1.Embedded high performance industrial motherboard. (1.8CM ultrathin).Low power consumption.
2.All tantalum capacitor design,onboard DDR3 2GB memory.
3.Support wifi/3G SIM card,support Mini SATA ,more efficiency.
4.Support power booting/plug and play,Timer-power-on.
5.Support 18bit single ch LVDS output.VGA and LVDS asynchronous with show supported.
6.Reliable, High stability, Low noise, low power consumption.Perfectly suitable for AD Player/AIO machine/IPC/VOD/Car PC/HTPC etc.
7.6*COM expansion header design.
8.Certificate:CE,FCC,RoHS
Main features:
|
Suitable for
|
AD Player;ultrathin AIO machine; Monitoring System; HTPC;VOD; IPC; POS etc.
|
|
Form Factor
|
3.5inch 115mm×155mm
|
|
Chipset Manufacturer
|
Intel
|
|
CPU
|
Intel® Atom N550 dual-core CPU(45NM,1.50GHz,1M L2 cache)
|
|
Chipset
|
Intel® Atom N550 processor + ICH8M chipset
|
|
L2 Cache
|
1MB, CPU integrated
|
|
Integrated Graphics
|
Intel GMA 3150 integrated graphics
|
|
BIOS
|
AMI BOIS
|
|
Super I/O
|
W83627UHG-E
|
|
RAM
|
Onboard 1333 DDR3 2GB memory
|
|
Sound
|
Onboard Realtek HD ALC662 chipset(Line-out,Mic-in)
|
|
Network
|
1*RTL8111E-VL 10/100/1000Mbps Gigabit Ethernet LAN,support RTL/PXE diskless booting
|
|
Storage
|
2*SATAII;1*40PIN IDE;1*mSATA
|
|
LVDS
|
Onboard 18bit single channel LVDS connector
|
|
USB
|
8*USB 2.0/1.1
|
|
Watchdog
|
Level 255 timer
|
|
Expansion Sockets
|
1*Mini SATA socket; 1*Mini-PCIE socket for 3G/WIFI;1*SIM card slot
|
|
Rear panel I/O
|
1*12V -DC power supply
|
|
1*VGA port
|
|
4*USB 2.0/1.1 port
|
|
1*1000M RJ45 port
|
|
2*Audio I/O interfaces( Line in,Line out,Mic)
|
Internal I/O
|
1*30pin LVDS
|
|
4*USB2.0/1.1 expansion header
|
|
1*SPDIF
|
|
6*COM expansion headers (support RS232/422/485)
|
|
1*GPIO (8 bit)
|
|
1*VGA expamsion header
|
|
1*LPT expansion header
|
|
SYS/CPU fan connector
|
|
Power Interface
|
12V-DC/ATX 4PIN
|
|
Power Consumption
|
17W
|
|
Working Temperature
|
-20°C~70°C (-4°F~158°F)
|
|
Storage Temperature
|
-20°C~80°C (-4°F~176° )
|
|
Operating Humidity
|
10%~90% (non-condensing)
|
OEM Service Offered/Design Service Offered/Buyer Label Offered
