Ultrathin HTPC all-in-one |
|
|
| Product name : Ultrathin HTPC all-in-one |
| Item : HTPC33-B100 |
| Details : |
|
Fit
mainboard
|
Model
|
CPU
|
Chipset
|
Graphics card
|
memory
|
|
ITX-M100
|
Intel 1037U 1.8G
|
Intel NM70
|
Intel®HD Graphics
|
Max 16G
|
|
ITX-M27
|
Intel D2550 1.86G
|
Intel NM10
|
Intel GMA3600
|
Max 4G
|
|
ITX-M2V
|
Intel D2700 2.13G
|
Intel NM10
|
NVIDIA GT520
Discrete Graphics
|
Max 4G
|
|
ITX-MA80
|
AMD G-Series 2.0G
|
AMD G-Series
|
AMD HD 8000
|
Max 4G
|
|
ITX-M35
|
AMD E350 1.6G
|
AMD Hudson D1
|
AMD HD 6310
|
Max 4G
|
|
ITX-M65
|
AMD N330 2.3GHz
|
AMD RS880M
|
ATI HD4200
|
Max 4G
|
|
Model No.
|
HTPC33-B100
|
|
Mainboard
|
ITX-M100_218
|
|
CPU
|
Integrated Intel® 22NM 1037U 1.8GHz dual-core CPU TDP17W
|
|
Chipset
|
Intel® NM70 Chipset
|
|
Graphics
|
Intel® HD Graphics Core graphics，Providing VAG、HDMI display output
|
|
System Memory
|
1* SO DDRIII Memory Slot，Support 1066/1333 Memory, Max. up to 8GB
|
|
Storage
|
1* MSATA Slot ,Support SSDs、WIFI
|
|
Network
|
Integrated Realtek Gigabit LAN chip,Supports Wake-on-LAN
|
|
Wireless Network
|
1* Mini-PCIE Slot，Support WIFI、3G Module
|
|

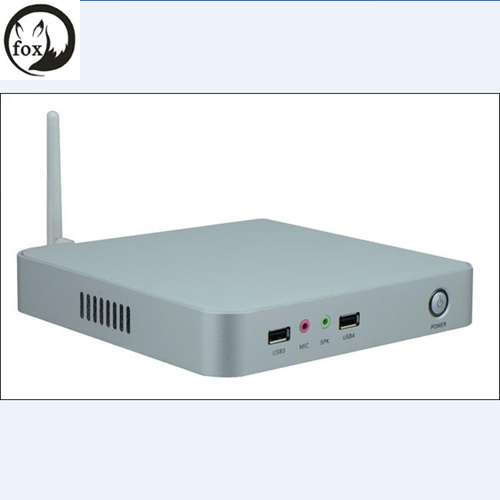

front panel port
|
2* USB 2.0 port
|
|
|
1* Mic port
|
|
1* Line out port
|
|
1* POWER
|
|

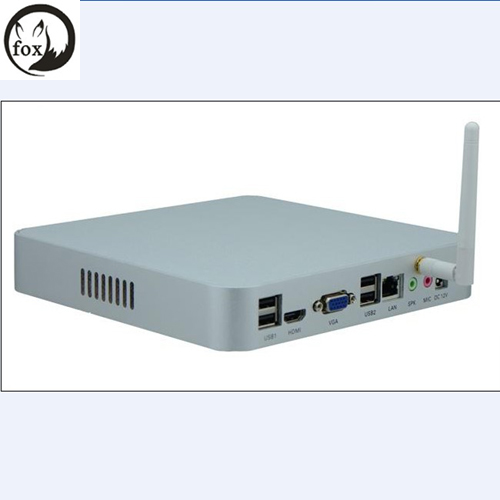

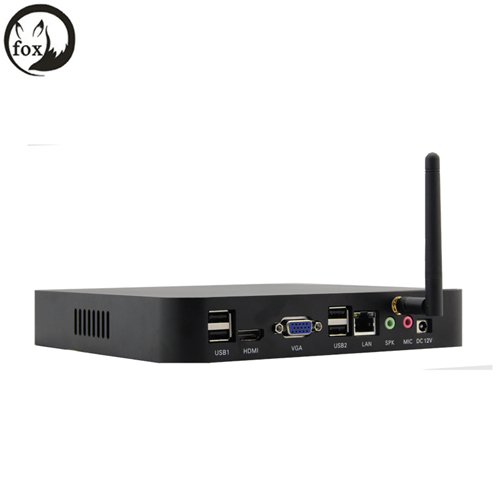

After panel port
|
4* USB 2.0 port
|
|
|
1* HDMI port
|
|
1* VGA port
|
|
1* LAN port
|
|
1* Line out port
|
|
1* Mic port
|
|
1* DC_12VIN port
|
|
1* WIFI port
|
|
Cooling System
|
By Mainboard cooling fan cooling
|
|
Operating Temperature
|
-0℃～50℃
|
|
Storage Temperature
|
-20℃～70℃
|
|
Operating Humidity
|
0% ～ 95% (relative humidity; non-condensing)
|
|
Anti-vibration
|
5～400Hz/random operating
|
|
Form Factor
|
197*197*33(LWH/mm)
|
|
Power Input
|
DC_12V single power input
|
|
Installation
|
Desktop or wall mounting
|
|
Color
|
Silver
|
|
 |
