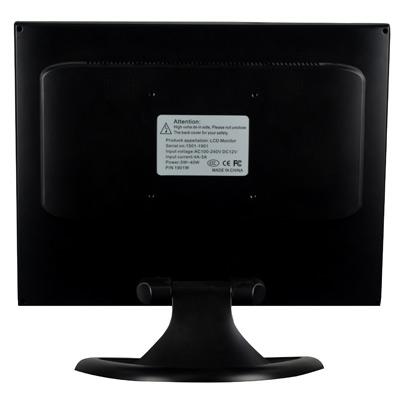

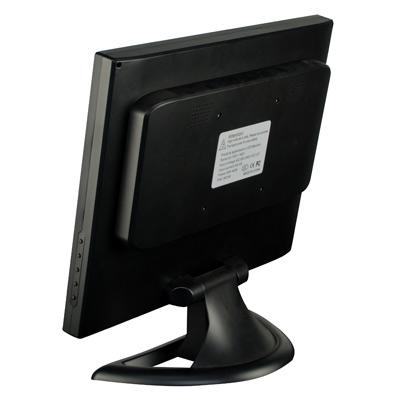

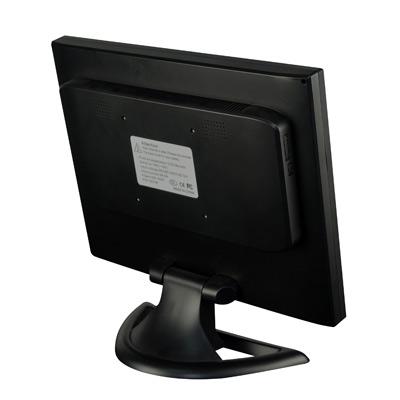

TouchScreen Monitors |
|
|
| Product name : TouchScreen Monitors |
| Item : FOX-500TK |
| Details : |
|
Name:
|
TouchScreen Monitors(FOX-500TK) |
|
Spec:
|
FOX-500TK |
|
Memo:
|
15",touch screens, LCD touch screen monitor |
|
Class:
|
Touchscreen Displays |
| Specification |
FOX-500TK |
| LCD Panel style |
15'' TFT LCD Panel |
| Screen Ratio |
4:3 |
| Resolution |
1024*768 |
| Active Display Area |
304 x 228 |
| Contrast Ratio |
450:1 |
| Brightness |
300 cd/m² |
| Pixel Pitch |
0.297 mm |
| Color |
16.7M |
| Viewing Angle |
160°/150° |
| Response Time |
8ms |
| Working Environment |
Temperature: -10C — 60C |
| Power Supply |
100-240V AC, 50/60Hz |
| Consumption |
≤30W |
| Touch Type |
Resistive Touch (4-wire /5 wire), SAW, Infrared Touch optional |
| Touch-screen reponse speed |
≤10ms |
| Touch-screen surface hardness |
3H |
| Touchscreen transmittance |
>85% |
| Touch-screen life |
>35 million times |
| Touch Interface |
USB or RS232 optional |
| Language |
Chinese,English(According to the request of customer customization) |
|
 |
