Router, Firewall, VPN |
|
| Product name : Router, Firewall, VPN |
| Item : FNS-5254L-S |
| Details : |
Desktop 4 Lan DC D2550 / D525/J1900

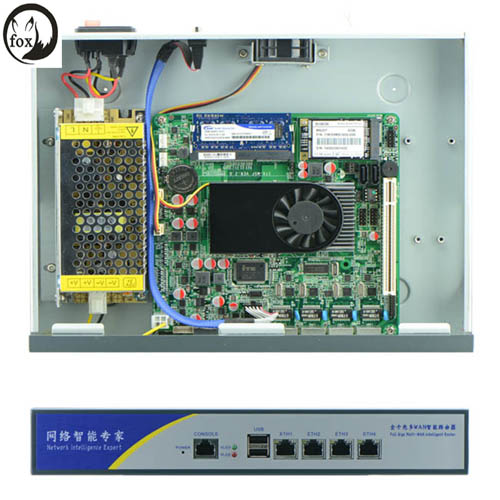

FNS-5254L-S
♦ Blue
♦ 300mm*230mm*46mm (L*W*H)
♦ Al alloy Fan cooling structure
♦ Intel®D525/1.8GHz dual core CPU
♦ Intel®G3150 Graphics
♦ 1*DDR3/1.5V/2GB memory
|
Model No.
|
FNS-5254L-S
|
|
CPU
|
Intel® Atom D525 dual-core processor(1.86GHz)
|
|
Chipset
|
Intel®NM10 high speed chipset
|
|
Memory
|
1* SO DDR3 slot, Supports 800/1066 memory,Max. up to 4GB
|
|
Display Port
|
1* DB15 VGA
|
|
Network
|
Integrated 4* RTL8111E Gigabit LAN ，Support Wake-on-LAN 、PXE
|
|
Storage
|
1*MSATA，supports SSD、USB WIFI
|
|
Panel Interface
|
1* COM（CISCO standard ）
|
|
|
2* USB 2.0
|
|
|
4* LAN口
|
|
|
1* POWER switch
|
|
|
1* POWER_LED、HDD_LED Indicator light
|
|
|
1* VGA（Rear panel ）
|
|
Cooling System
|
1* CPUFNA,2* SYSFAN
|
|
Operating Temperature
|
-0℃～50℃
|
|
Storage Temperature
|
-20℃～70℃
|
|
Operating Humidity
|
5%-95%(relative humidity; non-condensing)
|
|
Anti-vibration
|
5～300Hz/random operating
|
|
Power Supply
|
AC to DC_12V 10A
|
|
Installation
|
1U Rack-mount
|
|
Material and craft
|
Sandblasting oxidation process (silver)
|
|
Dimension
|
300mm（W）* 230mm（D）* 46mm（H）
|
|
 |
