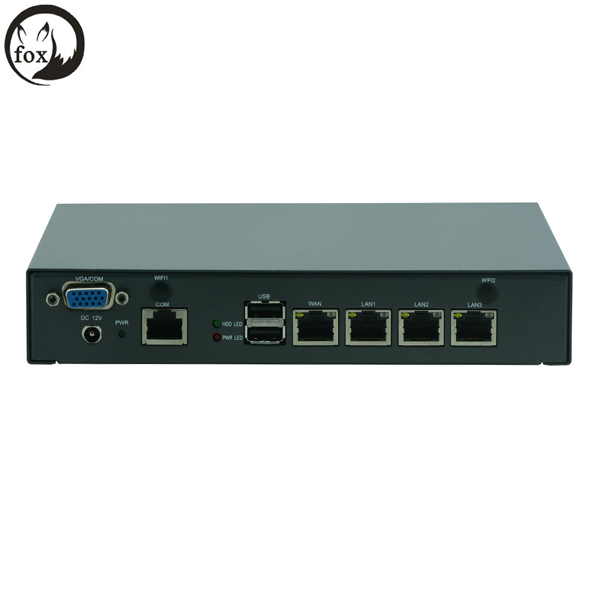

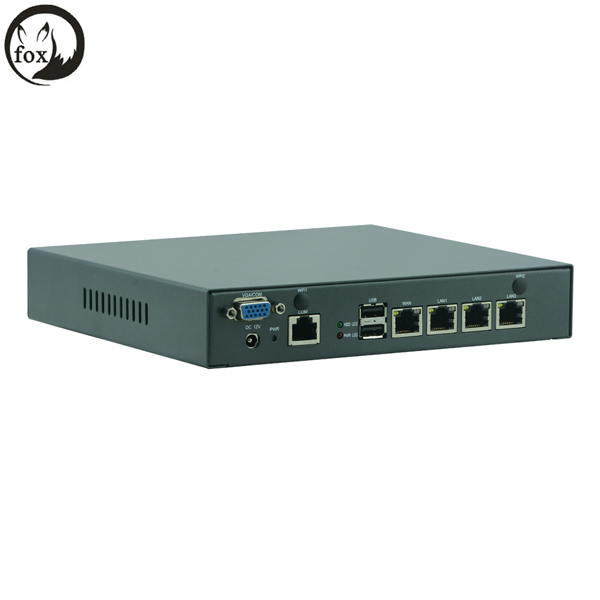

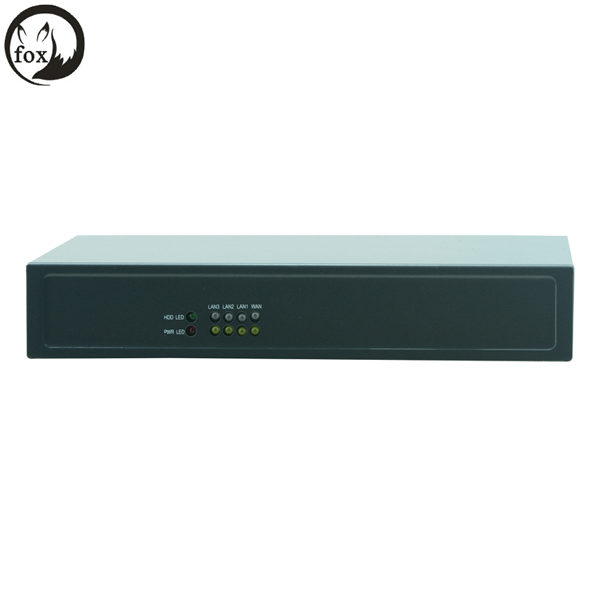

Firewall Appliance |
|
|
| Product name : Firewall Appliance |
| Item : FNS-R435 |
| Details : |
Desktop 4 Lan DC D2550 / D525/J1900
FNS-R435
♦ Al alloy Fan cooling structure
♦ Light silver black
♦ 197mm*174mm*35mm (L*W*H)
♦ Intel®D525/1.8GHz dual core CPU
♦ Intel®G3150 Graphics
♦ 1*DDR3/1.5V/2GB memory
|
Chassis
|
Color
|
Light silver black
|
|
|
Dimensions
|
197mm*174mm*35mm (L*W*H)
|
|
|
Structure
|
Al alloy Fan cooling structure
|
|
|
Material
|
Galvanized steel sheet
|
|
Motherboard
|
Model No.
|
ITX-M5V
|
|
|
Processor
|
Intel®D525/1.8GHz dual core CPU
|
|
|
Graphics
|
Intel®G3150 Graphics
|
|
|
Memory
|
1*DDR3/1.5V/2GB memory
|
|
Storage
|
2.5’HDD
|
N/A
|
|
|
CF
|
N/A
|
|
|
SSD
|
8G
|
|
System Feature
|
Ethernet
|
Intel 82583V, 1000/100/10Mbps,4x LAN
|
|
|
USB
|
2* USB2.0
|
|
|
Serial Port
|
1* COM
|
|
|
Display
|
1* VGA
|
|
|
Audio
|
N/A
|
|
|
Expansion Interface
|
2* MINIPCIE(1 is MSATA,1 is for WIFI )
|
|
|
Indicator
|
Power Indicator Light,HDD Indicator Light
|
|
|
System Control
|
DC power connector
|
|
|
Wireless
|
2* WIFI/3G SMA antenna (optional)
|
|
Power
|
Power
|
12V/5A adapter
|
|
Reliability
|
Installation
|
Desktop install
|
|
|
Operating T
|
-10°C~60°C
|
|
|
Storage T
|
-20°C~70°C
|
|
|
Relative humidity
|
5%-95%, no condensing
|
|
|
Vibration
|
0.5g rms/5-500HZ/random/operating
|
|
 |
