1U 6 LAN ATX G41 /B75
|
Name:
|
Network Server(FNS-G416L-L) |
|
Spec:
|
FNS-G416L-L |
|
Memo:
|
Intel G41+ICH7R,6*82574L |
|
Class:
|
Mini-ITX Motherboards |

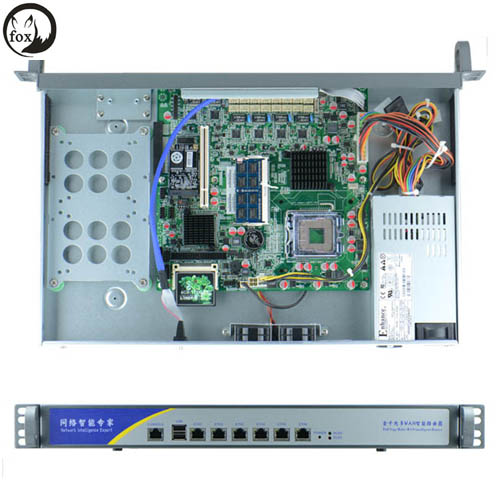

1 U Network Server with 6 Lan ports FNS-G416L-L
Quick Details
Products Status:Stock
Type:Embedded Computer,1U Network Server
Brand Name:FOX/OEM
Model Number:FNS-G416L-L
Place of Origin:Guangdong, China (Mainland)
Packaging & Delivery
|
Packaging Details:
|
Carton
|
|
Delivery Detail:
|
within 7 working days
|
Specifications
2 * Serial ATA2 3 gb/s controller
6 * 82573 l gigabit nics
1 * 1 u / 150 w ATX power supply
48.26 cm * 4.445 cm * 25.0 cm
1 U Network Server with 6Lan ports FNS-G416L-L
Support Intel Socket 775 architecture dual-core, four nuclear processor
Intel G41 + ICH7R chipset
built-in Intel GMA4500 graphics (Shared memory 128/224 MB)
2 * 204 needle single channel DDR3 1333/1066/800/667 memory, the biggest support 8 gb
4 * Serial ATA2 3 gb/s controller
6 * 82574 l gigabit nics
1 * 1 u / 150 w ATX power supply
case size 48.26 cm (width) * 4.445 cm (level) * 25.0 cm (depth)
|
Model NO.
|
FNS-G416L-L
|
|
CPU
|
Support Intel® LGA771 Xeon series Dual/Quad Processor
|
|
Chipset
|
Using Intel® G41+ICH7R Express Chipset
|
|
Memory
|
2* SO DDR3 1333/1066 memory slot, Max. up to 8GB
|
|
Display port
|
1* DB15 VGA port
|
|
Network Function
|
Integrated 6* Intel 82574L 10/100/1000Mbps Ethernet
|
|
|
Supporting Wake-on-LAN and PXE function
|
|
Storage
|
Providing a 3.5/2.5inch SATA disk location
|
|
|
Support RAID 0,1,5,10
|
|
|
1* MSATA slot, support SSD
|
|
|
1* CF card slot
|
|
|
1* IDE slot
|
|
Panel Port
|
1* COM(CISCO Standard Interface)
|
|
|
2* USB 2.0 port
|
|
|
6* LAN port
|
|
|
1* POWER Switch
|
|
|
1* POWER_LED, HDD_LED Indicator
|
|
|

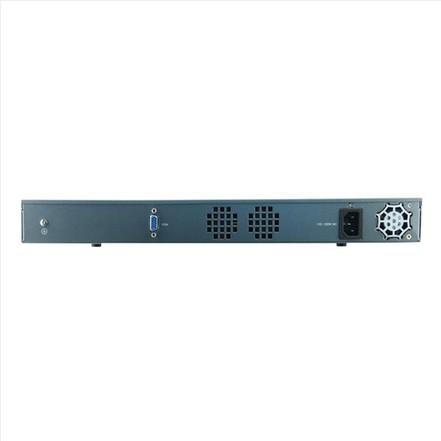

1* VGA port (Rear panel)
|
|
Cooling system
|
1* CPUFNA, 2* SYSFAN
|
|
Operating Temp.
|
-0℃~50℃
|
|
Storage Temp.
|
-20℃~70℃
|
|
Humidity
|
5%-95% (relative humidity; non-condensing)
|
|
Anti vibration
|
5~300Hz/random operating
|
|
Power
|
ATX Power supply
|
|
Installation
|
1U chassis frame
|
|
Material and Process
|
Surface sandblasting oxidation process(Silver gray)
|
|
Size
|
430mm(L)* 280mm(W)* 46.2mm(H)
|
