Nano PC |
|
|

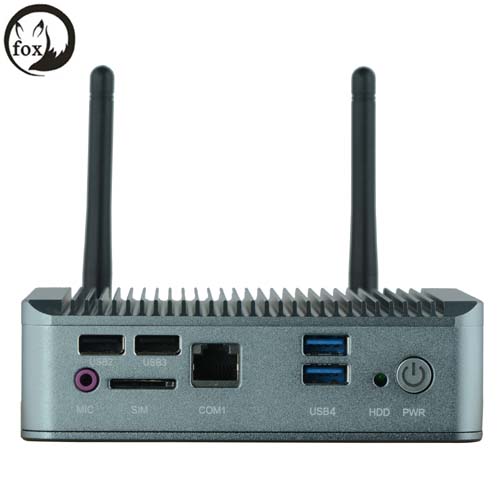

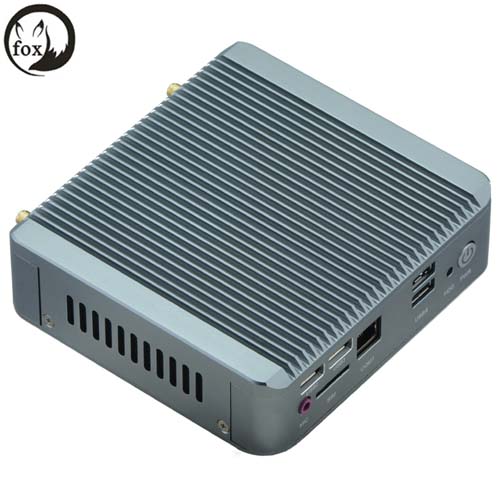

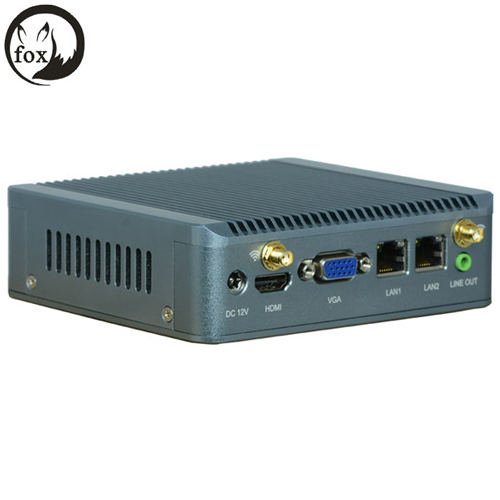

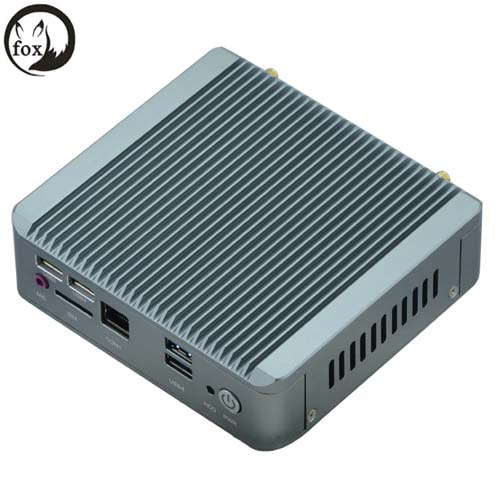

| Product name : Nano PC |
| Item : IPC-NFN29 |
| Details : |
Embeded Fanless PC (NFN Series)
Nano PC
♦ Silver/ Black
♦ 138mm*125mm*30mm(L*W*H)
♦ AI alloy Fanless design
♦ Atom J1900/2.00GHz quad core CPU
♦ Intel®HD Graphics
♦ 1*DDR3L/1.35V /2GB memory
|
Chassis
|
Color
|
Silver/ Black
|
|
Size
|
138mm*125mm*30mm(L*W*H)
|
|
Structure
|
AI alloy Fanless design
|
|
Material
|
Al alloy+ galvanized steel sheet
|
|
Motherboard
|
Model No.
|
N29-19
|
|
Processor
|
Atom J1900/2.00GHz quad core CPU
|
|
Graphics
|
Intel®HD Graphics
|
|
Memory
|
1*DDR3L/1.35V /2GB memory
|
|
Storage
|
2.5’ HDD
|
N/A
|
|
CF
|
N/A
|
|
SSD
|
32GB
|
|
System Feature
|
Ethernet
|
2*LAN (RTL8111F)
|
|
USB
|
3*USB2.0
|
|
1*USB3.0
|
|
Serial Port
|
2*COM, one is built in by pin
|
|
Display
|
1*VGA,1*HDMI
|
|
Audio
|
1*MIC,1*Line-out
|
|
Expansion Interface
|
2* Mini PCIE (one is MSATA,the other one is WIFI interface)
|
|
Indicator
|
1 for power state, 1 for HDD
|
|
System Control
|
Power switch
|
|
GPIO
|
Built in 2*5pin header
|
|
Wireless
|
1*2 WIFI/3G SMA antenna (optional)
|
|
Power
|
Power
|
DC 12V/3A adapter
|
|
Reliability
|
Installation
|
Desktop or wall-mounted
|
|
Operating T
|
-10°C~60°C
|
|
Storage T
|
-20°C~70°C
|
|
Relative humidity
|
5%-95%, no condensing
|
|
Vibration
|
0.5g rms/5~500Hz/random operating
|
|
 |
