Mini-ITX Motherboards

Mini-ITX Motherboards Mini-ITX Motherboards Mini-ITX Motherboards Mini-ITX Motherboards

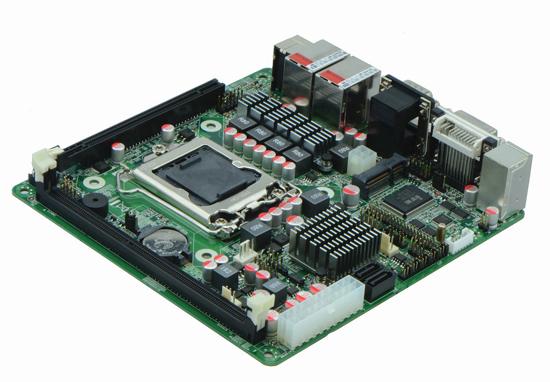

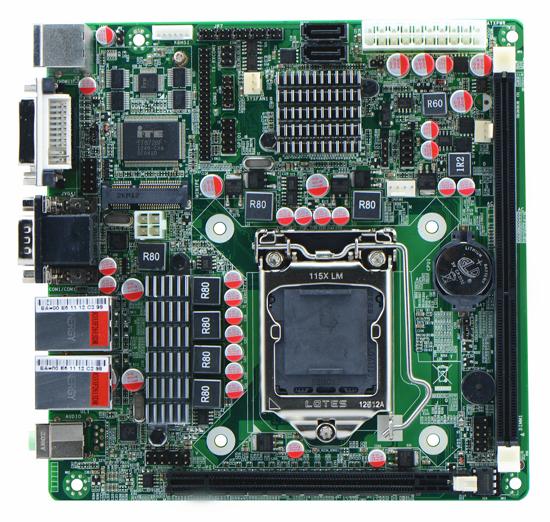

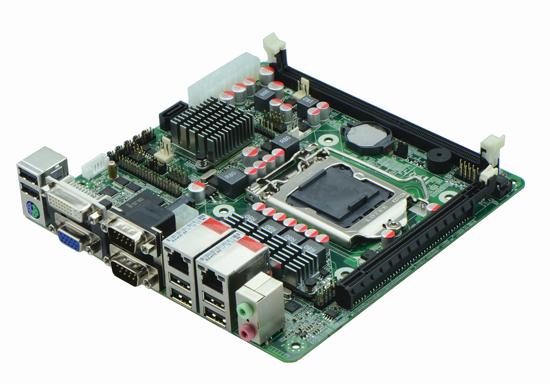

Product name : Mini-ITX Motherboards
Item : ITX-M61 VER:2.2
Details :

Online Shop: http://www.aliexpress.com/store/312429
Payment Terms: T/T,Western Union,PAYPAL,ESCROW


Support Intel Industrial LGA1155 DVI Motherboard With Dual LAN

Port:

shenzhen

Minimum Order Quantity:

1 Piece/Pieces

Supply Ability:

5000 Piece/Pieces per Month

Payment Terms:

L/C,T/T,Western Union,MoneyGram,paypal,escrow




Packaging & Delivery

Packaging Details:

OEM

Delivery Detail:

within 1~2 working days

Specifications

Intel LGA1155 Socket Core i7/i5/i3/Pentium Processor;
1*DDRIII,max up to 8G;
VGA,DVI,6*COM;2*LAN;
1*PCI-E 16x,1*Mini-PCIE;

Support Intel Industrial LGA1155 DVI Motherboard With Dual LAN



Feature

· support Intel LGA1155 Socket Core i7/i5/i3/Pentium Processor

· Intel H61 high-speed chipset

· Support 1*DDRIII DIMM memory chips,8G maximum support

· Provide VGA,DVI interface display output,support synchronous/asynchronous display

· 6*RS232 interface,support functions of charged (COM1 supports RS485/422)

· Support 1*PCI-E 16x slot,1*Mini-PCIE slots

· 2*SATAIII hard disk interface,transmission speed can be up to 600MB/s

· Integrated Realtek ALC662 6 channel high-fidelity audio

· Mini ITX Form Factor (17cmx17cm)

Specification



Chipset

Intel H61 High speed chipset

CPU

Support LGA1155 Intel Core i7/i5/i3 Sandy Bridge

Memory

1*DDRIII DIMM slot,support 1066/1333/800MHz,max up to 8GB

Display

Integrated Intel HD,support VGA/DVI

Expansion slot

1*PCI-E 16x slot

Audio

Onboard Realtek ALC662 6High fidelity audio track,support MIC Line-out

Storage

2*SATAIII Hard disk interface,transmission speed can be up to 600MB/s



1*Mini-PCIE,support SSD

Network

2* Realtek RTL8111E Gigabit nics chip, support WOL

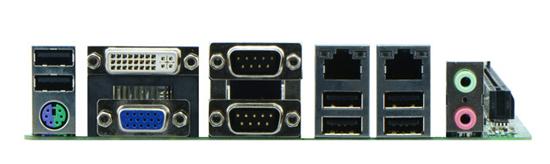

Rear I /O

1* PS/2



6* USB 2.0



2* RJ-45



1* MIC,Line out



1* DVI



2* RS232(COM1 support functions of charged,including support RS422/485 model)



1* VGA

Built-in I/O

3* USB 2.0



4* RS232



1* AUDIO(2 * 5 pin pin (front audio joint)



1* TX-RXCOM RS422/485



1* GPIO(support 4*GPIO)



1* CPUFAN and 2* SYSFAN



1* JVGA(2*5pin) JVGA and VGA(interface cannot be connected at the same time)



1* FP1(2*5pin function button and the indicator light on the front panel interface)

BIOS

32MB SMT Flash ROM

Watchdog Timer

Support hardware reset functions (level 256, 0 ~ 255 seconds)

Power supply

20pin ATX

Working Temp

-10°C~60°C

Working Humi

0-95%(relative humidity,no condensation)

Size

170mm x 170mm
