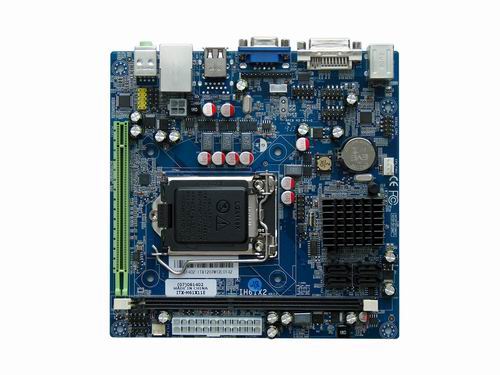

ITX Motherboard |
|
|
| Product name : ITX Motherboard |
| Item : ITX-M61X11E |
| Details : |
|
Name:
|
ITX Motherboard(ITX-M61X11E) |
|
Spec:
|
ITX-M61X11E |
|
Memo:
|
support Intel Core i7, i5, i3 series processor.Foreign trade Specials |
|
Class:
|
Mini-ITX Motherboards |
Online Shop: http://www.aliexpress.com/store/312429
Payment Terms: T/T,Western Union,PAYPAL,ESCROW
|
Specifications
|
|
CPU
|
support Intel Core i7, i5, i3 series processor
|
|
Front Side Bus
|
533/800/1066MHz
|
|
Chipset
|
INTEL H61
|
|
Memory
|
1. 1 x DDR3 DIMM sockets supporting up to 4 GB of system memory;
2. Support for DDR3 1333/1066 MHz memory modules.
|
|
Graphics
|
Depend on CPU
|
|
Audio
|
Integrated Realtek ALC887 Audio Codec for 8-Channel 2/4/5.1/7.1-Channel Audio-out
|
|
LAN
|
Onboard 1 x Realtek 8111E 1000LAN(10/100/1000MB Adaptive LAN), support PXE.
|
|
Storage Interface
|
4*SATAII 300MB/S connectors
|
|
Expansion Slots
|
1*PCI-Express 16x
|
|
USB
|
4*USB 2.0(2 pcs on the back panel, 2 pcs via the USB brackets connected to the internal USB headers
|
|
Internal
I/O Connectors
|
|
1 x 4-pin power supply header
|
1 x 24-pin ATX main power supply
|
|
4 x SATA headers
|
1 x CPU fan header
|
1 x System fan header
|
|
1 x front panel header
|
1 x Audio header
|
1 x Clear CMOS Header
|
|
2 x USB 2.0 headers
|
1 x COM headers
|
1 x CD_IN Audio header
|
|
1 x DEBUG_CON header
|
1 x 12Pin VGA_H header
|
1 x GPIO header
|
|
1 x J_SPDIF header
|
|
|
|
|
Back Panel
Connectors
|
1 x PS/2 mouse and keyboard ports
1 x VGA port
1 x DVI port
4 x USB 2.0 port+1 x RJ-45 ports
1 x audio2 Jacks( Line_out and MIC)
|
|
I/O Controller
|
ITE8718F-S
|
|
H/W Monitoring
|
1. CPU/System temperature detection.
2. CPU/System/Power fan speed detection
3. System voltage detection.
|
|
BIOS
|
Authorized AMI BIOS
|
|
Form Factor
|
Mini ITX 170mmx170mm
|
