Embedded motherboard

Embedded motherboard Embedded motherboard

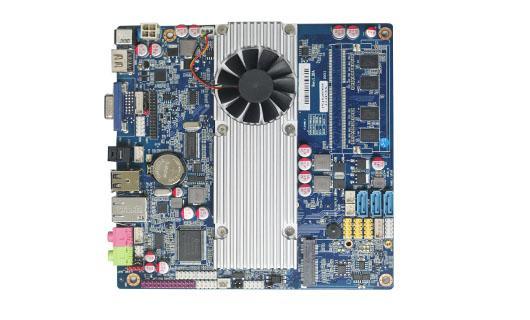

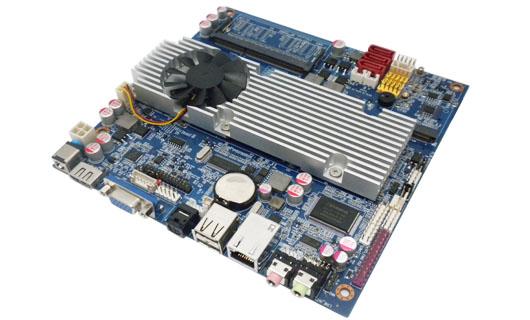

Product name : Embedded motherboard
Item : ITX-TOP45-VGA
Details :
Name:
Embedded motherboard(ITX-TOP45-VGA)
Spec:
ITX-TOP45-VGA
Memo:
onboard 1333 DDR3 2GB memory
Class:
Mini-ITX Motherboards

Online Shop: http://www.aliexpress.com/store/312429
Payment Terms: T/T,Western Union,PAYPAL,ESCROW





INTEL GM45+ ICH9M-E
Onboard 2G Memory
Supports 24 bits LVDS, support the screen voltage of 3. 3V/5V/12V. point 55 65 screen



cpu

Intel® Core™2 Duo Processor P7450(3M Cache, 2.13 GHz, 1066 MHz FSB)

Chipset

INTEL®GM45+ ICH9M-E   Build-in INTEL® GMA X4500M HD Graphics Core

BIOS

Award 8MB DIP Flash ROM

Memory

Board to stick 2G DDR3 memory.and SODIMM Sockets, the maximum is 6G

Expand Slot

1 * Mini PCI-SATA Flash Disk Interface.

1 * Mini PCI-E ,1* SIM slot support 3G, 3*SATA

Audio

Realtek ALC662 6-channel High Definition Audio

USB

Build in 4*USB 2.0/1.1

LVDS

Onboard 24 bits dual channel LVDS interface, 3.3V/5V/12V point the screen voltage. can point 55'   65 'screen .

Rear I/ O poorts

1 *12V-DC,1 *HDMI,1 * VGA, 1 *SPDIF,2 * USB 2.0/1.1,1*1000M RJ45,2 * Audio I / O

Build In i/o ports

1*30 pin LVDS, 2 * RS232, 1 * GPIO,1 * Internal VGA 2x5 2.54,1*LPT 2X13 2.54 ,

2*TV Output(AV and S-Video) , 1 * AUDIO ,On-board amplifier

Features

Solid capacitors design

Onboard DDR3/2GB memory expandable to 6GB

Support3G, SIM cards, support the MINI PCI electronic drives, and run faster.

Ultra-thin interface (up to 1.8CM)

Support RTL and PXE diskless boot support for power-off boot and regular boot (unattended)

Support 1080P and Blu-ray high-definition.

Supports 24 bits LVDS, support the screen voltage of 3. 3V/5V/12V.  point 55 65 big screen

HDHI VGA LVDS TV support asynchronous with significant
