Name:
|

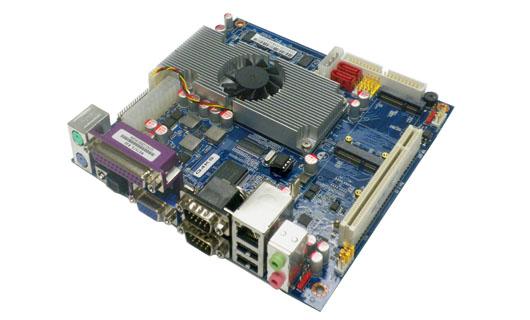

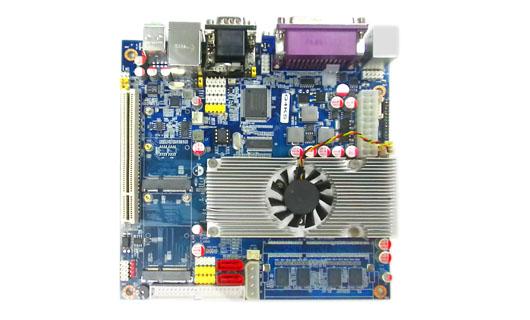

Embedded motherboard(ITX-TOP525) |
|
Spec:
|
ITX-TOP525 |
|
Memo:
|
|
|
Class:
|
Mini-ITX Motherboards |
Online Shop: http://www.aliexpress.com/store/312429
Payment Terms: T/T,Western Union,PAYPAL,ESCROW
Onboard 2G memory,
ITX form factor,
4 * RS232 interface with a 488 a 485
built-in 6 * USB 2.0
|
CPU
|
Intel® Atom processor D525
|
|
Chipset
|
Atom D525 +ICH8
|
|
Memory
|
Onboard 2G DDR3 memory + SODIMM Socket (The maximum is 4G)
|
|
Expansion slot
|
1 * Mini PCI-SATA
|
|
1 * Mini PCI-E1* SIM
|
|
2*SATA 1X44P IDE
|
|
Audio features
|
Realtek ALC662 6 channel high-fidelity sound card
|
|
Network
|
1 * Realtek RTL8111EL PCI E gigabit Lan port
|
|
USB
|
built-in 6 * USB 2.0/1.1
|
|
LVDS
|
on-board 18 bit LVDS interface
|
|

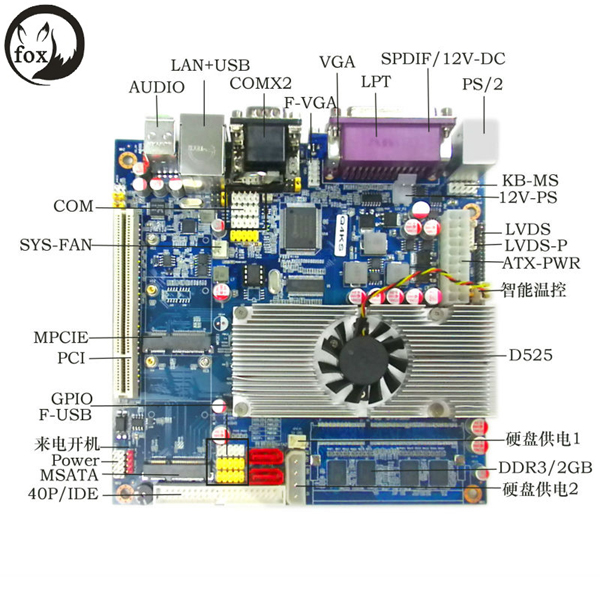

Real panel I / 0 interface
|
1 * 12V-DC interface, 1 *PS2
1 * VGA port,1*LPT, 1 *SPDF
2 * USB 2.0/1.1 headers
1 * 1000M RJ45 connectors
2 * Audio I / O interface (line input, microphone and line out)
|
|
Built-in I / 0 interface
|
1 * 30-pin LVDS connector
4 * RS232 interface with a 488 a 485
* The GPIO connector (8 GPIO)
1 * Internal VGA 2x5 2.0
1 * the AUDIO-board amplifier
|
|
BIOS
|
Award 8MB DIP Flash ROM
|
|
Size
|
Mini ITX Form Factor (17cmx17cm)
|
|
Power supply
|
DC Power jack +12V DC-in ,12V 5A
|
|
Power consumption
|
+5 V0.5A, the +12 V 1.0A
|
|
Operating Temperature
|
-20 ° C to 70 ° C (-4 ° F to 158 ° F).
|
|
Storage Temperature
|
-20 ° C to 80 ° C (-4 ° F ~ 176 °)
|
|
Relative humidity
|
10% ~ 90% (non-condensing)
|
|
Weight
|
0.40 kg
|
