fanless industrial computer |
|
|
| Product name : fanless industrial computer |
| Item : IPC-NFD10 |
| Details : |
Order Information
|
No.
|
Model NO.
|
Processor
|
Motherboard
|
Memory
|
Storage
|
LAN
|
COM
|
USB
|
WIFI
|
Adapter
|
OS
|
|
1
|
IPC-NFD100F
|
1037U/1.80GHz
|
M100_618
|
2G
|
500G
|
1*RTL8111E
|
6
|
6
|
N/A
|
12V/5A
|
XP
|
|
2
|
IPC-NFD100K
|
1037U/1.80GHz
|
M100_618
|
4G
|
500G
|
1*RTL8111E
|
6
|
6
|
N/A
|
12V/5A
|
XP
|
|
3
|
IPC-NFD103K
|
3217U/1.80GHz
|
M100_I3
|
4G
|
500G
|
1*RTL8111E
|
6
|
6
|
N/A
|
12V/5A
|
XP
|
|
4
|
IPC-NFD105K
|
3317U/1.70GHz
|
M100_I5
|
4G
|
500G
|
1*RTL8111E
|
6
|
6
|
N/A
|
12V/5A
|
XP
|
|
Model No.
|
IPC-NFD10
|
|
Motherboard
|
ITX-M100_618
|
|
CPU
|
Integrated Intel® 1037U 1.8GHz dual-core CPU TDP17W
|
|
Chipset
|
Intel® NM70 high speed chipset
|
|
Graphics
|
Integrated Intel® HD core Graphics，providing VAG、HDMI
|
|
System Memory
|
1* SO DDRIII Memory Slot，Support 1066/1333 Memory, Max. up to 8GB
|
|
Expansion Slot
|
1* Mini-PCIE SLOT,Support WIFI/3G module
|
|
Storage
|
1* 2.5’ SATA
|
|
|
1* MSATA slot,Support SSD、WIFI
|
|
Network
|
Integrated Realtek Gigabit LAN chip,Supports Wake-on-LAN
|
|

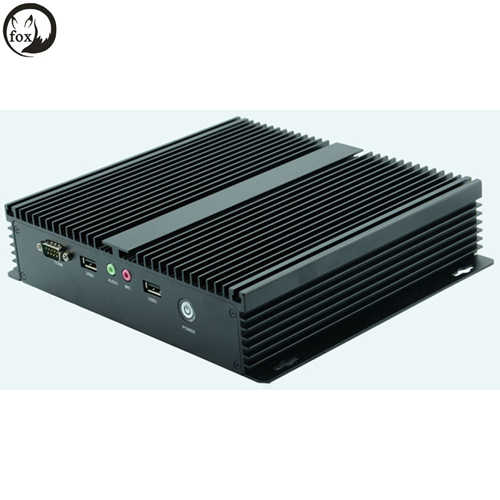

Front Panel Port
|
1* COM port
|
|
|
|
2* USB 2.0
|
|
|
1*Line out
|
|
1* Mic port
|
|
1* POWER
|
|

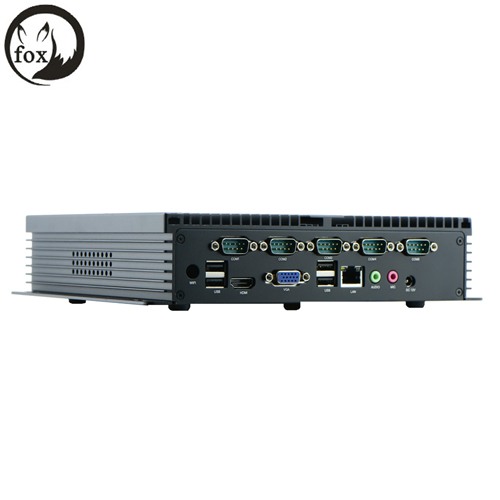

Rear Panel Port
|
4* USB 2.0
|
|
|
5* COM
|
|
|
1* HDMI
|
|
1* VGA
|
|
1* LAN
|
|
1* Line out（green）
|
|
1* Mic （red)
|
|
1* DC_12VIN
|
|
1* WIFI antenna interface
|
|
Cooling System
|
Full enclosed and fanless ,cooling by chassis
|
|
Operating Temperature
|
-0℃～50℃
|
|
Storage Temperature
|
-20℃～70℃
|
|
Operating Humidity
|
5%-95%(relative humidity; non-condensing)
|
|
Anti-vibration
|
5～400Hz/random operating
|
|
Form Factor
|
210*220*50 (L*W*H/mm)
|
|
Power Input
|
DC_12V single power input
|
|
Installation
|
Desktop or wall mounting
|
|
Material and craft
|
Sandblasting oxidation process (Black)
|
|
 |
