Name:
|
Solid state disks(S2/S3/S6) |
Spec:
|
S2/S3/S6 |
Memo:
|
DOM,SSD,CF |
Class:
|
Computer parts |

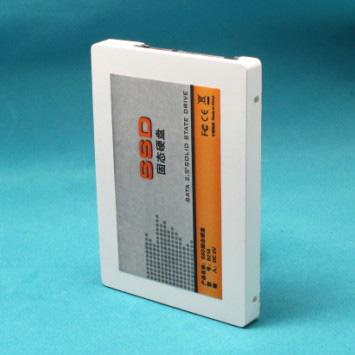

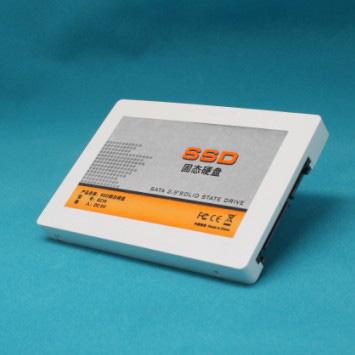

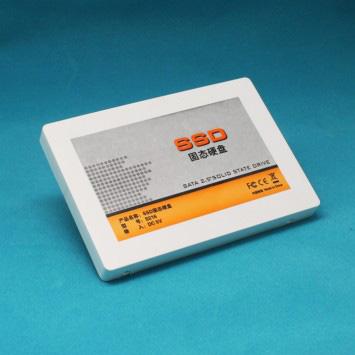

SATA SSD is high performance designed to replace the conventional SATA HDDs.
Without mechanical part, SSD are more reliable and power efficient than traditional
mechanical HDD, and can be used in mainstream PCs, industrial PCs, thin client systems,
POS terminals, Networking and Health equipment.
To achieve industrial level, SATA SSDs are applied to extensive reliability testing,
such as temperature, humidity, shock, vibration and long time burning.
Feather
· Various form factor with IDE/ZIF/PCI-e connector
· The best choice for replacement of 1.8 /2.5 SATA HDDs
· Build-in Hardware ECC engine ensures data storage reliable
· Advanced wear-leveling algorithm and bad block management
· RoHS, CE and FCC compliant
· Low power consumption
· 3 years warranty
Model
|
S2 series
|
S3 series
|
S61OPS series
|
interface
|
SATA 3Gb/s
|
Dimension(mm)
|
36.9*26.6*2.2
|
26.5*37.8*1.6
|
100x69x72.5
|
Connector
|
7+_15pin male
|
|
|
Flash
|
SLC/MLC
|
ECC
|
12bit/512Bytes
|
24bit/1024Bytes
|
24bit/1024Bytes
|
Capacity
|
4G-128G
|
4G~256G
|
4G~256G
|
Max Sequential
Read/Write (MB/s)
|
170/120
|
250/180
|
260/220
|
MTBF(hours)
|
>2,000,000
|
Operation Temp.(℃)
|
0~+70(industry), -40~+85(normal)
|
Storage temperature
|
-45~95
|
Endurance
|
Shock:1,500G, Vibration:15G
|
Humidity
|
5%~995
|
Power Consumption
|
<300mA
|
<350mA
|
<350mA
|
Voltage
|
DC 5V±10%
|
