180*180mm/ATX24+4/4*SATA/2*RTL8111EL/2*DDR3/10*COM/2*VGA/1*HDMI/MSATA/8*USB2.0/4*USB3.0
/PS2/PCI/LPT/GPIO
Specification
|
The main chip
|
|
Chip manufacturer
|
Intel
|
|
CPU slot
|
LGA 1155(SB/IB)
|
|
South chip
|
intel B75
|
|
specification
|
|
Main board structure
|
Mini-ITX
|
|
Board size
|
180mm*180mm
|
|
Power supply mode
|
ATX 24+4pin
|
|
The cooling mode
|
Have a fan
|
|
Number of com
|
10
|
|
Number of usb
|
12
|
|
SATA Number
|
4
|
|
Memory type
|
DDR3 SODIMM
|
|
The memory model
|
Dual channel
|
|
Max memory capacity
|
16G
|
|
The graphics sound network
|
|
graphics output
|
2*VGA,3*VGA,1*HDMI
|
|
Network chip
|
RTL8111EL
|
|
Net amount
|
2
|
|
Sound card type
|
ALC 662
|
|
The onboard interface
|
|
The PCI slot
|
1
|
|
PCI-E 16X slot
|
NO
|
|
MSATA
|
1
|
|
Mini-PCIE
|
NO
|
|
SIM slot
|
NO
|
|
VGA extensions port
|
2*6 2.54 connector
|
|
HDMI extensions port
|
NO
|
|
front audio port
|
2*5 2.54mm N8 port
|
|
Audio amplification
|
1*4 2.0mm 2*3W port
|
|
KB/MS port
|
NO
|
|
Parallel LPT port
|
2*13 2.0mm N26 port
|
|
Serial COM port
|
2*5 2.54mm N10 port
|
|
COM ports number
|
9
|
|
COMvoltage selection
|
NO
|
|
RS422/485
|
NO
|
|
USB2.0 port
|
2*5 2.54mm N9 port
|
|
USB2.0 Number
|
4
|
|
USB3.0 port
|
2*10 2.0mm N11 port
|
|
USB3.0 Number
|
2
|
|
GPIO port
|
2*5 2.54mm 4in4out
|
|
SATA Number
|
4
|
|
The rear interface
|
|
KB/MS
|
KB/MS
|
|
HDMI
|
2*HDMI
|
|
COM
|
1*COM
|
|
LAN
|
2*LAN
|
|
USB2.0
|
4
|
|
USB3.0
|
2
|
|
Audio
|
1
|
|
Mic
|
1
|
|
PW/HDD LED
|
1
|
Introduction

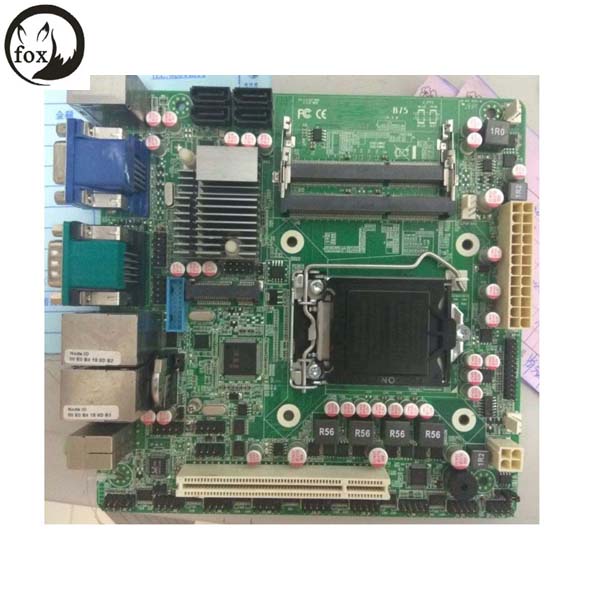

ITX - B75 interface figure

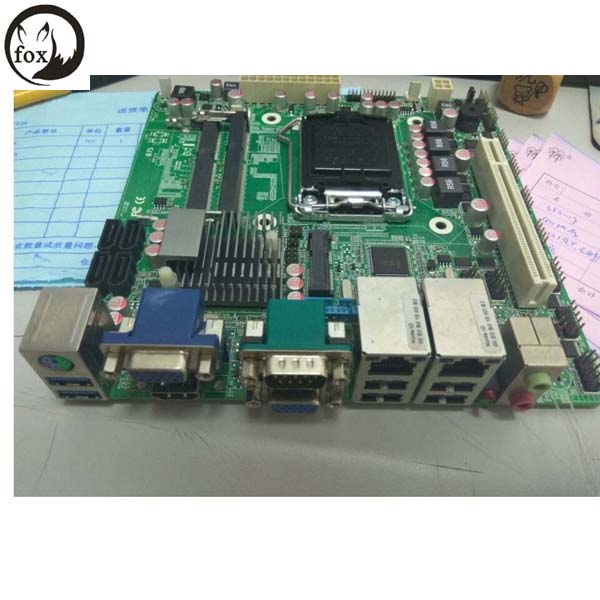

ITX - B75 positive figure
PS2 interface support two USB keyboard/mouse 3.0/2 a VGA output/support VGA1 + VGA2, VGA1 + HDMI,
+ VGA2 of HDMI, asynchronous double display output can be synchronized
2 * RTL8111EL ShuangQian trillion network card, rear POWER supply POWER leds and HDD leds
24 pin + 4 pin ATX power supply
Support all the Intel 1155 CPU, cy young, i3, i5 and i7, solid-state capacitors, inductive materials solid exquisite
All aluminum alloy heat sink
10 RS232 COM,
The Mini - SATA electronic hard drive (M - SATA) interface, support USB and Mini - pcie signals (option)
Four standard SATA hard disk interface
The SO - 204 pin, DDR3 DIMM support dual channel memory
Support 1 the PCI
Support GPIO, VGA support built-in extension row needle, to support the expansion of the start row needles
Packing list
1 * manual
1 * drive disc
1 * cable
1 * the power cord
1 * I/O block slice
1 * packaging
