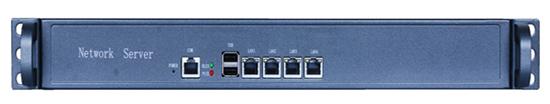

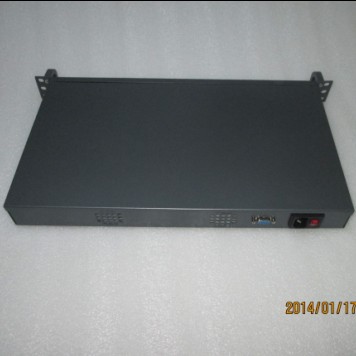

Network Server |
|
|
| Product name : Network Server |
| Item : FNS-D254L-M |
| Details : |
1U 4 LAN DC D525/D2550/1037U
|
Name:
|
Network Server(FNS-D254L-M) |
|
Spec:
|
FNS-D254L-M |
|
Memo:
|
Intel Atom D2550,4 Intel 82583V |
|
Class:
|
Mini-ITX Motherboards |
Online Shop: http://www.aliexpress.com/store/312429
Payment Terms: T/T,Western Union,PAYPAL,ESCROW
Embedded D2550 Firewall Appliance For 4*Intel 82583V
| Port: |
shenzhen |
| Minimum Order Quantity: |
5 Unit/Units |
| Supply Ability: |
5000 Unit/Units per Month |
| Payment Terms: |
L/C,T/T,Western Union,MoneyGram,paypal,escrow |
Packaging & Delivery
| Packaging Details: |
OEM |
| Delivery Detail: |
within 2~3 working days |
Specifications

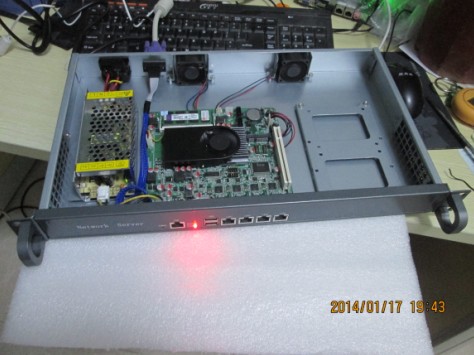

Firewall Appliance Device;
Intel Atom dual-core D2550 processor(1.86 GHz);
4*Intel 82583V Gigabit Nics;
Support SSD,SATA
Feature
- The onboard Intel Atom dual-core D2550 processor (1.86 GHz)
- Intel NM10 high-speed chipset
- Support SO DDR3 memory, the biggest support 4G
- Provide 4 Intel 82583V gigabit nics,Support WOL,PXE function
- Support RS232 interface,2 USB 2.0 interface
- Support SSD hard drive, SATA hard disk
- Mini ITX From Factor(17cmx17cm)
Specification
|
CPU
|
Intel Atom D2550 Dual-core processor(1.86 GHz)
|
|
Chipset
|
Intel NM10 high speed
|
|
Memory
|
SO DDR3,max up to 4GB
|
|
Display
|
1* DB15 VGA
|
|
Network
|
4*Intel 82583V
|
|
Storage
|
1*3.5/2.5'' SATA position and 1*mSATA slot
|
|
Interface
|
2* USB 2.0
|
|
|
4* LAN
|
|
|
1* COM(RJ45)
|
|
|
1* VGA
|
|
|
1* POWER
|
|
|
1* POWER_LED,HDD_LED
|
|
Cooling
|
1x CPU fan,2x system fan
|
|
Working Temp
|
-10°C~60°C
|
|
Storage Temp
|
-20°C~70°C
|
|
Working Hum
|
0-95%(relative humidity,no condensation)
|
|
Anti
|
5~300Hz/random operating
|
|
Size
|
48.26cm(W)*4.445cm(H)*25.0cm(D)
|
|
Power supply
|
DC_12V
|
|
Installation
|
1U rack
|
|
Material
|
Surface sandblasting oxidation process (silver)
|
|
 |
