Network Motherboard |
|
|
| Product name : Network Motherboard |
| Item : ITX-Q77NS |
| Details : |
|
Name:
|
Network Motherboard(ITX-Q77NS) |
|
Spec:
|
ITX-Q77NS |
|
Memo:
|
LGA1155 CPU，6 RJ45,2 SFP |
|
Class:
|
Mini-ITX Motherboards |
Features
1. Intel LGA1155 CPU, support I3/I5/I7.
2. 4 DIMM, up to 32GB.
3. 6 LAN, LAN1/LAN2 support Bypass.
4. 2 LAN use SFP fiber interface.
5. 2 PCIE-X8 slot.
6. 4 SATA, 1 CF.
7. Standard ATX power in.

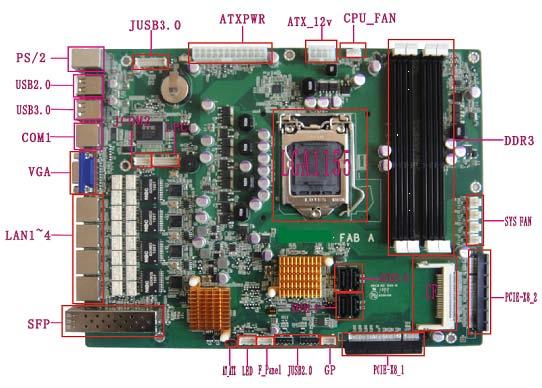

| M. B. Spec |
|
Main
|
CPU
|
Intel LGA1155 Serial CPU
|
|
Chipset
|
Intel Z75 Chipset (Ivy Bridge platform)
|
|
Memory
|
DDR3
|
|
Up to 32GB
|
|
Bios
|
SPI AMI EFI bios
|
|
Support ACPI2.0B, APM1.2, DIM2.0, SMBIOS2.5
|
|
Display
|
Graphics
|
Intel HD Video
|
|
Port/Header
|
1 VGA Port
|
|
LAN
|
Speed
|
10/100/1000Mbps auto adapting
|
|
Interface
|
4 RJ45
|
|
2 SFP
|
|
USB
|
Speed
|
USB3.0 600Mb/s and USB2.0 480Mb/s
|
|
Port
|
2 USB 2.0Port, 2 USB 3.0 Port
|
|
Header
|
2 front standard USB2.0 header, 1 USB 3.0 header
|
|
Storage
|
SATA
|
2 standard SATA3 port
|
|
2 standard SATA2 port
|
|
CF Card
|
1 CF card slot
|
|
IO
|
Port/Header
|
1 PS/2 Keyboard and Mouse
|
|
1 RJ45 Console, 1 COM header
|
|
Other
|
PCI
|
2 PCIE-X8 extended slots
|
|
GPIO
|
1 input and output programming pin
|
|
Power-In
|
1 ATX 2*12 24pin port, 1个2*4 8pin port
|
|
FAN Port
|
1 CPU FAN port, 4 SYS FAN port
|
|
PCB
|
Spec
|
289*219mm，6layer Green
|
|
O.S
|
Windows
|
XP/WIN7
|
|
Others
|
Unix/Linux
|
|
Work Temp
|
T range
|
-20~60℃
|
|
H range
|
0~85%RH
|
|
 |
