Ncomputing |
|
|
| Product name : Ncomputing |
| Item : FX300 |
| Details : |
|
Name:
|
Multimedia PC Station, 1 PCI 3 stations(FOX-X300) |
|
Spec:
|
FOX-X300 |
|
Memo:
|
Multimedia PC Station, 1 PCI 3 stations |
|
Class:
|
PC Share/Terminal |
Ncomputing OS X300 Thin client is to create multi-user environment by inserting the host PCI card 1 PC can be extended to 6 users. Ncomputing OS X300 is composition with 1 PCI cards and 3 sets of the multi-user box to make sure that seven users to simultaneously share a host of resources.
Family Features:
 |
The max users |
7 |
| Distance limitations |
Less than 10M |
| Card |
Need to inserted PCI card into the host computer |
| Connection |
Cable connection |
| OS supported |
Windows XP Home Edition /Professional, Windows 2000 Professional, LINUX, Windows XP |
| Support Film playing |
yes |
| Color range |
16 bit |
| Resolution |
800x600(75Hz), 1024x768(60Hz) |
| Core advantage |
To avoid the large number of enterprises out of the computer and reduce excessive maintenance problems to thoroughly do feel, easy also save money |
Each kit comes with 3 X300 terminals and can transform one Windows XP computer into 4 individual workstations.
Key Benefits:
1, Cost effective way to add up to 9 more users, no maintenance required, secure and fast.
2, Ncomputing OS X300 is built around NComputing's proprietary multi-user computing technology for sharing one PC with up to 7 users.

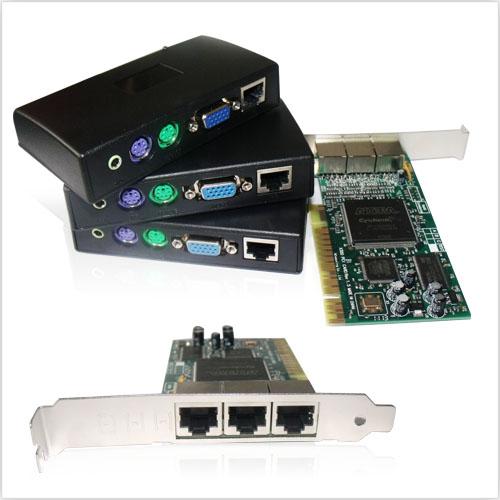

3, Ncomputing OS X300 kit consists of an X300 PCI card, three Xtenda Multi-user Boxes, and our own proprietary software.

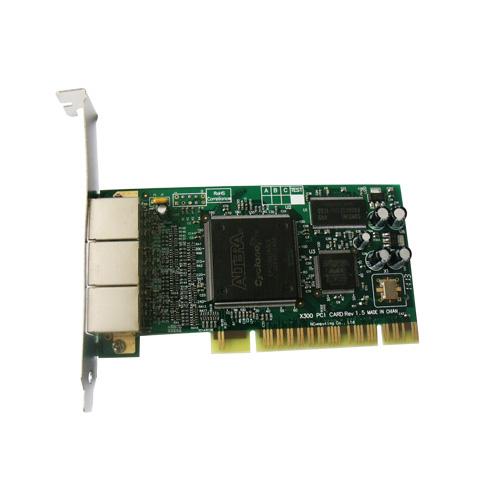

4, The PCI Card has three RJ45 ports that connect to each of the three X300 multi-user terminals via a LAN cable.
5, Thin client X300 terminal boxes do not have a power adapter. They draw power from the host PC (1/2 watt) meaning you only need one electrical drop to power up to 7 uses.
6, You can install up to three X300 PCI cards (purchase another 2 kits) into a single computer, enabling the computer to have maximum of 7 total users.
7, Ncomputing OS X300 gives any school, office, or home user the opportunity to expand an existing PC easily and affordably.
FOX-X300 Multi-user Kit PRODUCT OVERVIEW
Share1PC with up to7users
|
Today’s PCs are Like Supercomputers
majority of people use only a small fraction of their available FOX capacity. The FOX-X300 taps this unused capacity so that up to seven users can simultaneously share a single PC.
Each user gets their own personal FOX environment (applications, settings, files and preferences),
but at a fraction of what it would cost to deploy individual computers. So even though seven
people share a single system, they each get their own rich PC experience.
Easy to Install
Just install the PCI card and virtualization software on the shared PC. Then connect the access devices
to the PCI card with the supplied cables. Finally, connect each user’s monitor, keyboard, and mouse to
their access device. Now, four users can enjoy their own independent virtual desktops (one on the
shared PC and three on virtual PCs). Add a second FOX-X300 kit and seven users can simultaneously share a single PC.
Powerful and Flexible
Windows or Linux PC experience. Users can enjoy multimedia with sound and full-motion video at screen resolutions of 800x600 and 1024x768. Software applications run simultaneously
and independently on each virtual desktop so that users don’t even know they are sharing a PC.
Best of all, most software applications run right out of the box, so your staff and users won’t need any
special training.
Cost-Effective and Efficient
With a longer useful life and far fewer parts, the FOX solution also helps reduce e-waste, a growing problem around the world.
With the FOX-X300, you can easily lower your FOX acquisition and support costs by up to 70%. You will also save money
on electricity–the highly efficient FOX-X300 uses about 1 watt of electricity per added user (compared to 115 watts for a typical PC). The access
devices
themselves are small, silent, and have no moving parts. Yet they deliver a rich Each FOX-X300 kit contains a PCI card, virtualization software, and three access devices. Setup is easy. FOX virtual
PC solutions
are based on a simple fact: today’s PCs are so powerful that the vast |
Liberate thepower ofyour PCs
The FOX-X300is ideal for:
Classrooms and libraries
Small business
Internet and email
Public access
Key Features & Benefits
Share one PC with up to seven users
Slash FOX acquisition and support costs
Easy to set up, maintain, and secure
Compact, reliable, and energy-efficient (no fans or disks)
Includes powerful virtualization (terminal services)
Software for Windows/Linux
Supports standard applications, including multimedia
Connect users directly to the shared PC via standard
Cables up to 10 m (33 ft.) long
FOX-X300 Multi-user Kit Datasheet
|
Hardware
|
|
Size
|
Access Device: 110*65 *28 mm
PCI Card: Low profile PCI plug-in card (includes standard and low profile PCI bracket) Shipping Size: 138*138*98mm
|
|
Weight
|
FOX-X300 Access Terminal: 70g*3+80g*1
Shipping Weight (includes power adapter, packaging, documentation, etc. ): 460g
|
|
Power Supply
|
No external power adapters are required
Power to the access devices is provided by the PCI card through the cable
|
|
LED Indicator
|
Power/Connection: Green LED located on front of access device
|
|

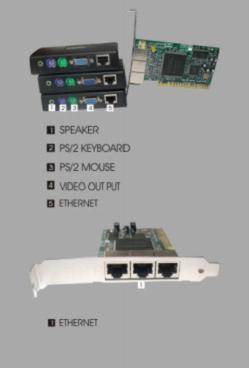

Peripheral Connections
|
|
01 – Speaker Output
02 – Keyboard Port
03 – Mouse Port
04 – Video port
05 – ETHERNET
|
|
Connection to Host PC
|
Standard Category 5 or 5e UTP cable: up to 5 meters (16 feet)
Standard Category 6 STP cable: up to 7 meters (23 feet)
|
|
Video Resolution
|
800x600 and 1024x768, 16-bit color maximum, 60 Hz refresh rate.
|
|
Audio
|
Stereo output via speaker port
|
|
Data Security
|
No USB ports on access device ensure absolute data security
USB ports on host PC can be assigned to different users
Note: Local user access to USB ports requires separate USB extension cables -- not included
|
|
Reliability (MTBF)
|
>100,000 hours (calculated using Bell core Issue 6 TR-332, Case 2, Part I at 40°C)
|
|
TERMINAL SERVICES SOFTWARE
|
|
Max # Users
Per PC
|
Each FOX-X300 kit adds 3 users to a host PC. A maximum of two kits can be used with one PC
to get a total of 7 users (3 for each kit plus 1 on the host)
|
|
User Software
|
FOX terminal services software
|
|
Supported Operating
Systems
|
Microsoft Windows and Linux
|
|
SYSTEM REQUIREMENTS AND OPTIONS
|
|

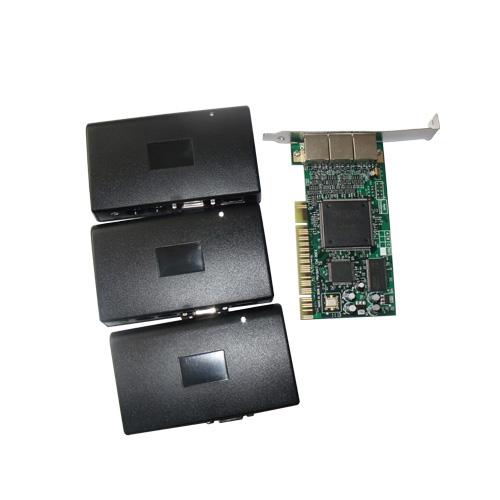

Kit Contents
|
One FOX-X300 Kit includes three (3) access devices, o, , , , , , , , ne PCI card, Terminal services
software installation CD, and Quick Installation Guide.
|
The number of users on individual host will depend upon the host system capabilities
as well as the applications used and performance expectations for those applications.
It is recommended that new customers test their application(s) before adding additional users.
Does not support 3D games.
Application software and OS licenses for the host PC may be required by the respective software vendor and
must be purchased separately.
