Nano-ITX Motherboard |
|
|
| Product name : Nano-ITX Motherboard |
| Item : ITX-N29_2L |
| Details : |
|
Model
|
Specification
|
|
Motherboard.
[ITX-N29-J1800].
|
CPU:Integrated Intel® Celeron Processor J1800 (2M Cache, up to 2.42 GHz).
2* RTL Gigabit lan.
|
|
Motherboard.
[ITX-N29-J1900].
|
CPU:Integrated Intel® Celeron Processor J1900 (2M Cache, up to 2.42 GHz).
1* RTL Gigabit lan.
|
|
Motherboard.
[ITX-N29-19].
|
CPU:Integrated Intel® Celeron Processor J1900 (2M Cache, up to 2.42 GHz).
2* RTL Gigabit lan.
|
|
Motherboard.
[ITX-N29-2L].
|
CPU:Integrated Intel® Celeron Processor J1900 (2M Cache, up to 2.42 GHz).
2* RTL Gigabit lan.
LVDS(Dual Channel 24bit).
|

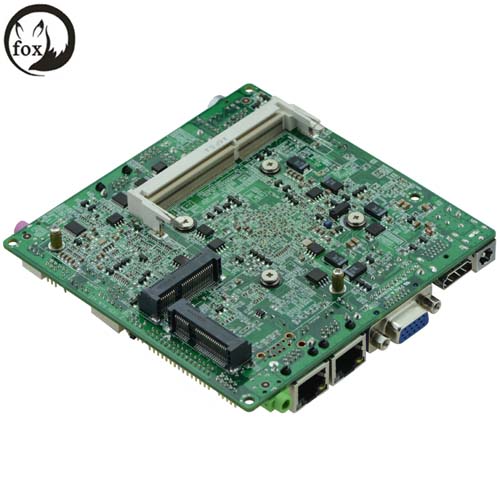

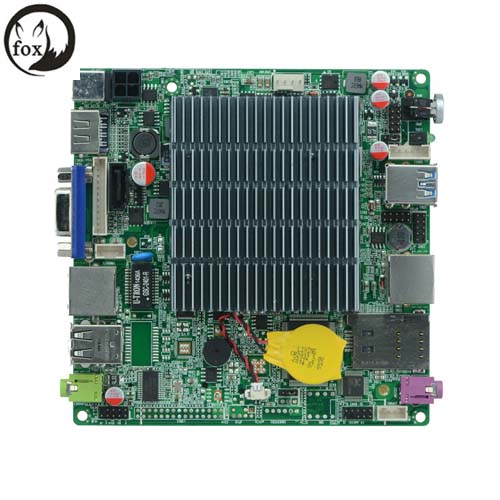

Industrial Mainboard onboard Quad Core J1900 processor 12*12cm NANO-ITX Motherboard
|
FOB Price:
|
|
|
Min.Order Quantity:
|
1 Piece/Pieces
|
|
Supply Ability:
|
2000 Piece/Pieces per Month
|
|
Port:
|
Shenzhen
|
|
Payment Terms:
|
L/C,T/T,Western Union,MoneyGram,Paypal / ESCROW
|
Specifications
Onboard Integrated Intel Celeron J1900 CPU
12*12cm Nano ITX ,Intel Bay trail motherboard
1-2 gigabit lan for selection
Product Description
Quality -based, Service success .
Industrial Mainboard onboard Quad Core J1900 processor 12*12cm NANO-ITX Motherboard
|
Motherboard No.
|
ITX-N29 VER:1.2
|
|
CPU
|
Integrated Intel® Celeron Processor J1900 (2M Cache, up to 2.42 GHz)
|
|
|
Compatible with Intel® Bay Trail -I/M/D full series CPU
|
|
Chipset
|
Intel® Bay trail SOC
|
|
Memory
|
1* SO DDRIII 1066 ,up to 8GB
|
|
Display
|
Integrated Intel® HD Graphics
|
|
|
Support VGA ,HDMI,LVDS(Dual Channel 24bit)
|
|
Expansion Slot
|
1* Mini-PCIE WIFI/3G
|
|
|
1* MSATAⅢ support SSD
|
|
Web
|
1* RTL Gigabit lan ,Support wake-on-line ,PXE
|
|
|
Can support 2*Gigabit lan,USB1 for another choice. (default :USB1)
|
|
Storage
|
1* SATA
|
|
Audio
|
Integrated Realtek HD ALC662 for 6-Channel output,support MIC & Line-out ,Speaker
|
|

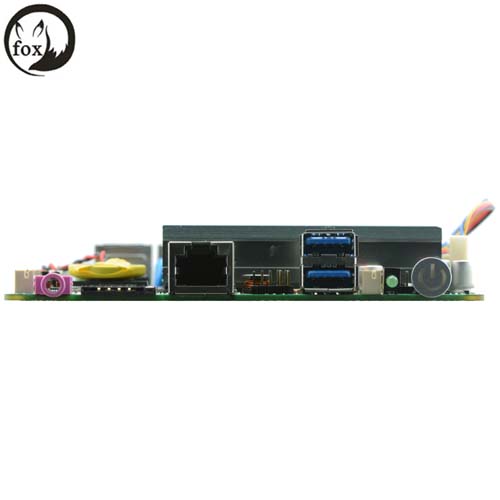

Front Panel
|
1* MIC(Red)
|
|
|
1* SIM Card
|
|
1* COM(CISCO)
|
|
2* USB 3.0
|
|
1* PWRLED HDDLED
|
|
1* POWER
|
|
Back I/O
|
1* 12V DC_JACK Input
|
|
|
1* HDMI
|
|
|
1* VGA
|
|
|
1* LAN
|
|
|
1* USB 2.0(Can select LAN2)
|
|
|
1* Line-out(Green)
|
|
Internal I/O
|
1* LVDS 2*15pin , Support Dual Chanel 24bitLCD( dual 8)
|
|
|
1* JVGA1 12pin
|
|
|
1* RS232
|
|
|
2* USB 2.0
|
|
|
1* PS/2 6Pin
|
|
|
1* FP1 2*5pin Front panel buttons and LED connected
|
|
|
1* AUDIO Front Audio interface 2*5pin
|
|
|
2* Speaker 2pin
|
|
|
1* PWROUT (Hard drive power connector)
|
|
|
1* ATX 4pin
|
|
|
1* LVDS INVERTER
|
|
FAN
|
1* CPUFAN 4pin
|
|
GPIO
|
Support 4 way Input & Output GPIO
|
|
BIOS
|
AMI 32MB Flash ROM
|
|
Watch Dog
|
Support hardware reset function (L256, 0~255 seconds)
|
|
Power
|
DC_12V Single power supply
|
|
Operating Temp.
|
-10℃~60℃
|
|
Storage Temp.
|
-40℃~80℃
|
|
Humidity
|
5%-95% ( relative humidity; non-condensing)
|
|
Size
|
120mm x 120mm
|
|
 |
