Motherboard(Discrete Graphics Card)

Motherboard(Discrete Graphics Card) Motherboard(Discrete Graphics Card)

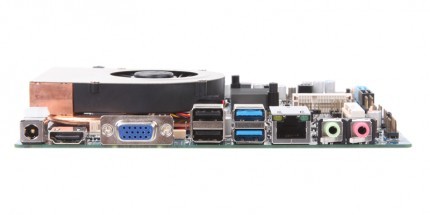

Product name : Motherboard(Discrete Graphics Card)
Item : ITX-C1037SL
Details :

Intel® Celeron® 1037U Processor

Intel® NM70 Chipset

nVIDIA GeForce GT730 Graphics

1x SO-DIMM DDR3-1333/1600MHz up to 4G

2x SATA /2x COM /8x USB

1x HDMI /1x G-b LAN/2x MiniPCIe


Compatible with Windows®

Compatible with Windows® to provide user-friendly

environment and to optimize computer capabilities.



Mini-ITX

Mini-ITX gives you freedom to choose smaller and coollooking

case. It is easy to build your own personalized media

centralized PC.



nVIDIA® GeForce® GT730

On board discrete nVIDIA® GeForce® graphics card and

dedicated graphic memory provides you a faster, more

immersive experience in your favorite applications. Support

3D Vision, CUDA, PhysX.



Support DirectX® 11

DirectX® 11 Features the latest technologies of Compute

Shaders,Direct 2D,Multithreded Rendering and Tessellation

for create worlds realistic characters and more fluid

Gameplay.



HDMI Output

High-definition video formats (720p, 1080p, 2K and 4K) and

the multi-channel digital audio.



Gigabit LAN

The Gigabit network interface delivers a high speed LAN

connection with data transfer rate up to 1000Mb/s, providing

new generation connectivity for the broadband era. Gigabit

LAN is ideally for seamless internet connection such as

streaming audio and video contents.



Energy Saving

Low power consumption saves money and better for the

Environment.



Serial ATAIII 6.0 Gb/s

The SATA specification doubles bus bandwidth from 3Gb/s

to 6Gb/s.



Serial ATAII 3.0 Gb/s

The SATA specification doubles bus bandwidth from 1.5Gb/s

to 3Gb/s.



COM HeaderRS232 Support

Serial communication has been widely adopted in data trans

mission,especially in the remote transmission of multiple line

s, for it can avoids the quality inconsistency under the same

standard interface.



ROHS Compliant



Processor

Intel® Celeron 1037U

Chipset

Intel® NM70

System Memory

 1×SO-DIMM DDR3 1600 MT/s 4GB

Graphics

On-Board Nvida GT730
1G DDR3 Memory
Triple Display Support
HDMI+DVI+LVDS+VGA
DX11.1 Support
HDMI 1.4b For 4096×2304@24Hz

LVDS Controller

Mstar TSUMU58NWHL-LF
24-bit Dual-Channel LVDS
Up to 1920×1080

Network Controller

2×RTL8111F G-Bit LAN

Audio Amplifier

TPA3113D 3-W/ch 8-Ω

Super I/O

 ITE8728F

Rear I/O Ports

1×DC_IN 12~19V (4pin ATX PWR)
1×HDMI
1×DVI-I
2×USB2.0
2×USB2.0
1×RJ-45
2×Audio(Mic-in,Line-out)

Internal I/O Connectors

1×SATA2 (3.0Gb/s)
1×SATA3 (6.0Gb/s)
1×Full Mini-PCIe (for M-SATA)
1×Full Mini-PCIe (for USB+PCIe+3G)
1×JVGA & 1×eHDMI (shared LVDS)
2×F_COM
4×F_USB 2.0
1×F_Audio
1×GPIO

Form Factors

Mini-ITX

Operating System

Win XP,Win CE,Win7,Win8,Linux

Environment

0~60

System Management

RTC Timer Power-On
Watch Dog Timer
Wake-On-Lan
Auto Power-On
JAHC Support
