Linux Thin client

Linux Thin client Linux Thin client Linux Thin client Linux Thin client
Product name : Linux Thin client
Item : FOX-100VH
Details :



           thin client FOX-100VH
  One PC share with many users. Saving!

  Embedded with linux OS
                   No license fee
                   High compatibility
                           Attractive price & Excellent performance

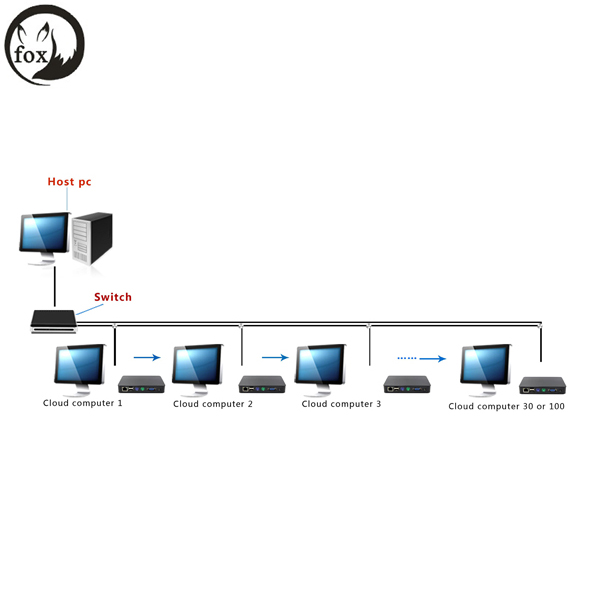

FOX-100VH Working Principle

FOX-100VH features
1.High compatible with Windows/Linux OS
No need to set time and date. Connect with host pc directly!



2. HDMI and VGA Resolution support
Max support HDMI 1920*1080P.
Support 1366*768 resolution which can support irregular monitor such as
 15.6/18.5inch

3. Attractive price&Excellent working performance
FOX-380(WIN CE 6 OS)<FOX-100VH 2 times faster <FOX-300VH(Linux OS) 2 times
 faster
 <FOX-500VH<FOX-600VH)3 times



Recommend configuration for Host PC



User Number
CPU
RAM
HDD
Below 10 users
Intel Core Duo2.0GHZor above
2GB-4GB
500GB
10-20 users
Intel Core Duo2.0GHZ above or Quad-Core
4GB-8GB
500GB
20-30 users
Core Quad-Core 2.6GHZ
above
8GB
1TB
30-50 users
Xeon dual-core
2.3GHZ above or Quad-Core
8GB-16GB
1TB-2TB

Main function

FOX-100VH makes the remote connection to the server by RDP 7.1 protocolit is free to use
 the softwares on the host after connection,such as o
ffice software,financial
 software
,ERP software,real estate software,airline flight information software etc.
Fast to connect, easy to operate & maintain, FOX-100VH is one green computer that not only
 reduce
s the cost of enterprise computer inputs,
but also reduces maintenance costs,it meets the corporate office network construction and
 easy maintenance, and security requirements, greatly improv
es the corporate office
 efficiency, provid
es customers with unprecedented convenience.
RDP7.1 remote connection

Windows 7 OS is very stable,it features a higher security. FOX-100VH thin client connects to
 windows 7
OS server by RDP 7.1 protocol,it unified customer
 service
to each user,and upgrades and maintenance work in one step, make it being "zero"
 maintenance
.
Overview HD big picture
Support most picture formats,such as JPG,BMP,GIF,TIFF,PNG etc,also supports picture
 zoom and other operations
.
High-speed WIFI module

Without cumbersome wiring, more convenient to move,FOX-100VHW provides users a
 better network environment.


Specification:



CPU Model
All winner A20
Dual-core 1G
Protocol
RDP7.1
RAM
DDR3 512MB
Storage
4GB Flash
OS
Inner core Linux
Resolution
VGA: 800*600, 1024*768,1366*768,1280*1024, 1440*900
HDMI: 1280*720P,1920*1080P
OS supported
Windows XP / Windows 7/Linux OSRecommend win7
Windows server 2003 and 2008 R2

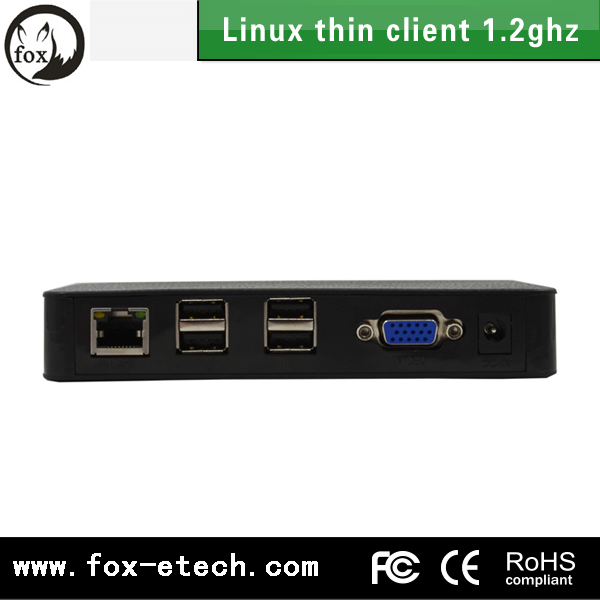

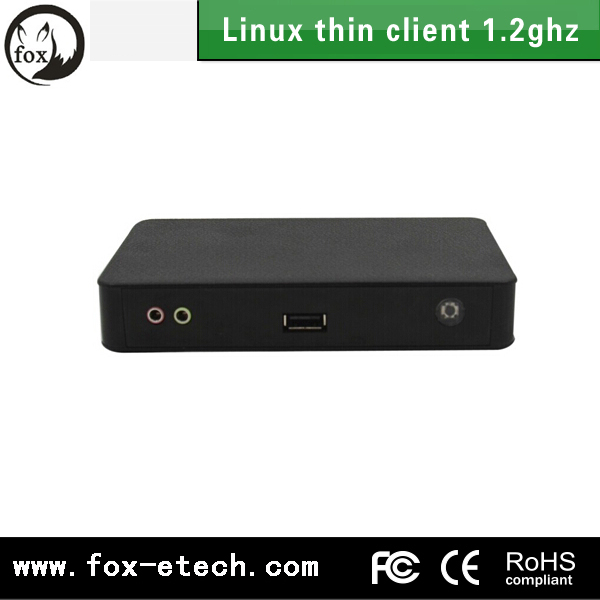

I/O
Output
1*HDMI port
1*VGA port
5* USB2.0 port
1*Audio output port
Input
1*power port
1* LAN port
1* Audio input port
Appearance
Size
145X92X25MM
Weight
0.5KG
Power
5V/2A
Consumption
5W
Performance
1
Strong compatibility
2
No time display problems
3
Dual mode display  HDMI /VGA
Compare
FOX-380(WIN CE 6 OS )<FOX-100VH 2 times faster <FOX-300VH 2 times faster <FOX-500VH<FOX-600VH3 times

Pictures
