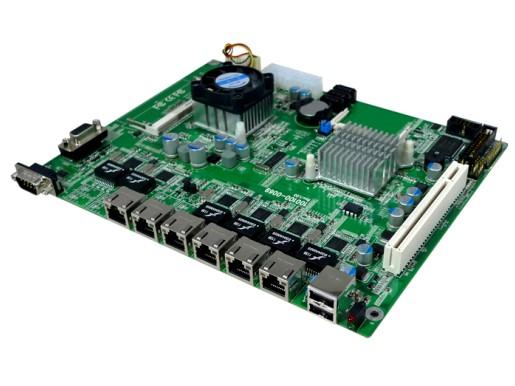

IPC Motherboard,Firewall |
|
|
| Product name : IPC Motherboard,Firewall |
| Item : ITX-ISD525 |
| Details : |
|
Name:
|
IPC Motherboard,Firewall(ITX-ISD525) |
|
Spec:
|
ITX-ISD525 |
|
Memo:
|
ATOM,D525,ITX-ISD525,Firewall,IPC Motherboard |
|
Class:
|
Mini-ITX Motherboards |
Payment Terms: T/T,Western Union,PAYPAL,ESCROW
|
CPU
|
|
Support D410 or D525 CPU
|
|
Chipset
|
|
Intel Atom D410 or D525 + ICH8M chipsets
|
|
Main Memory
|
|
Supports DDRIII 1066/1333 Double Channel Mode
Provides Two 240 pin DDR3 slots
Support 1066/1333 DDRIII up to 4GB
|
|
VGA
|
|
Integrated Intel Graphics Media Accelerator 3150
|
|
Ethernet
|
|
Onboard six Intel 82574L 1000Base-T Ethernet controllers
Full-Duplex supported
|
|
Storage
|
|
One 50pin CF slot
Two SATA devices
|
|
USB 2.0
|
|
Integrated USB 2.0 controller in NM10
Supports Hi-speed, Full-speed and Low-speed data transfer --rate. Max. Bandwidth 480Mbits/s
|
|
Expansion Slots
|
|
1 PCI slot
|
|
I/O Interface
|
|
- 1 * PS/2 mouse and keyboard connectors
|
|
- 2 * COM Ports
|
|
- 1 * VGA Port
|
|
- 2 * USB Ports
|
|

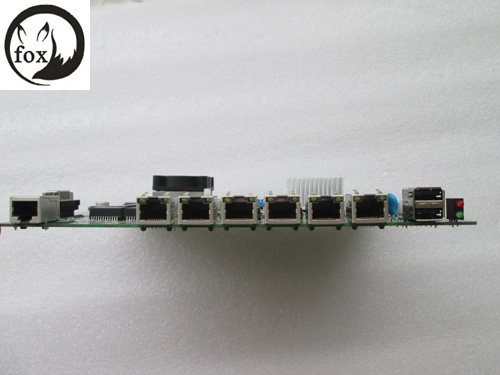

- 6 * RJ-45 LAN Ports
|
|
System BIOS
|
|
Award BIOS with 8MB Firmware Hub
ACPI/PnP supported
Software WatchDog supported
|
|
Environment
|
|
Operating temperature:0 ℃ to 65 ℃
Storage temperature:-20℃ to 80 ℃
Relative humidity:10% to 90%(Non self-solidifying)
|
|
Form Factor
|
|
- Flex-ATX @ 480 mm (L) × 184 mm (W)
|
