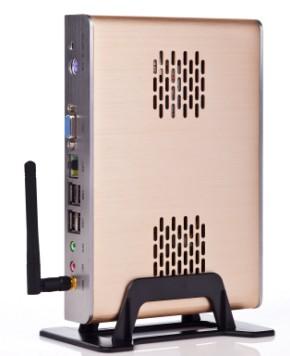

Fanless Mini PC |
|
|
| Product name : Fanless Mini PC |
| Item : FOX-270S |
| Details : |
|
Name:
|
Fanless Mini PC(FOX-270S) |
|
Spec:
|
FOX-270S |
|
Memo:
|
Fanless Mini PC |
|
Class:
|
Mini PC,Barebone |
Online Shop: http://www.aliexpress.com/store/312429
Payment Terms: T/T,Western Union,PAYPAL,ESCROW
| Applications |
Specification |
Government
Library
school
factory
office
home |
Dimension |
205x 140x40mm(L*H*W) |
| Weight |
1.5Kg (Reference) |
| Power Consumption |
<20W |
| Onboard CPU |
Intel® Atom™ processor N270 (single-core / 1.6 GHz /
512 KB L2 cache) |
| Memory |
• 1G DDR RAM
• Single-channel DDR with two connectors for
800 / 667 MHz memory support (2 GB max) |
| Chipset |
Intel 945GSE+ICH7M |
| Hard Disk |
(Optional) |
| DOM |
8 GB |
| Onboard VGA |
Intel® Graphics Media Accelerator 950 |
| Onboard LAN |
Realtek* 10/100/1000 Mb/s Ethernet Controller |
| Audio Solution |
• Front-panel mic / headphone header |
| Front-Panel Connectors |
• 1 × Power on/off
• 1 × Power LED
• 2 × USB 2.0
• 2 × Audio header |
| Back-Panel Connectors |
• 1 × Power input （12V）
• 1 × PS2 mouse(keyboard) port
• 1 × TV port
• 1 × VGA port
• 1 × RJ45 port
• 4 × USB 2.0 port
• 1 × Audio header
• 1 × Serial port |
Operating System
(Only Xpe is buildin) |
Support Windows 2000/XP/Vista/Windodws 7/Windows 2008(Optional) |
