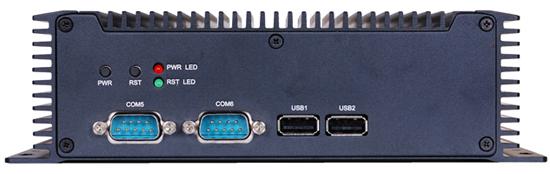

Dual Ethernet Cheap Fanless PC With Intel Atom N2600 3.5" Motherboard VGA+HDMI 6*COM/6*USB

Port:	shenzhen
Minimum Order Quantity:	1 Unit/Units
Supply Ability:	5000 Unit/Units per Month
Payment Terms:	L/C,Western Union,MoneyGram,paypal,escrow



Packaging & Delivery

Packaging Details:	OEM
Delivery Detail:	within 2~3 working days for sample

Specifications

Intel Dual Core N2600 or N2800 processor(optional); Support SSD/WIFI/3G; Dual LAN ports; Adopting fanless design

Dual Ethernet Cheap Fanless PC With Intel Atom N2600 3.5" Motherboard VGA+HDMI 6*COM/6*USB



Feature

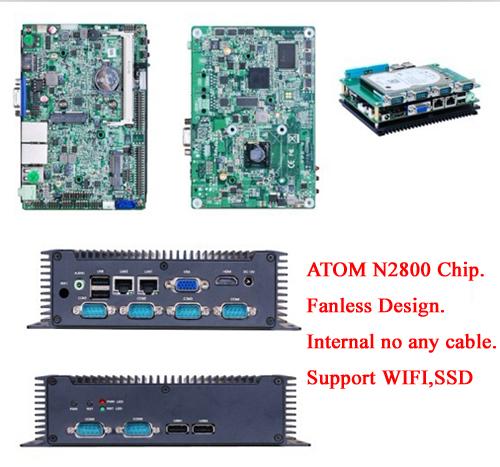

• Onboard Intel atom dual-core N2600/N2800 processor(optional)
• Intel NM10 high-speed chipset
• Support DDR memory SO DIMM III,largest support 4G(N2600 support 2G)
• Supports VGA,HDMI synchronous/asynchronous display
• Integrated 2 RTL8111E gigabit nics
• Support 6*RS232 interface
• Support 2*MINI - PCIE slots, can use SSD/wireless network card
• 1*Realtek ALC662 six channel high-fidelity audio, support 6*USB2.0 interface
• Adopting fanless design

Specification

CPU	Intel Atom N2600 1.6 GHz
	Intel Atom N2800 1.86 GHz
Chipset	Intel  NM10
Memory	SO DDR3,support 4GB(N2600 support 2GB)
Display	Intel GMA3600,1080P
Network	RTL8111E,2*Gigabit Nics
	1*WIFI interface
Storage	1*2.5'' SATA position and 1*MSATA slot

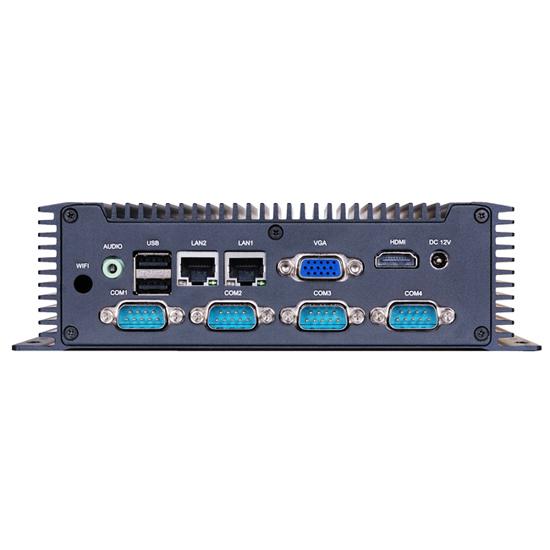

Interface	4* USB 2.0
	6* DB9
	1* VGA
	1* HDMI
	2* LAN
	1* Line_out
	1* DC_12V IN
	1* POWER,RESET
	1* POWER_LED,HDD_LED
	1* WIFI(antenna)
Cooling	Fanless closed cooling system
Working Temp	-0°C~50°C
Storage Temp	-10°C~60°C
Humidity	0-95%(relative humidity,no condensation)
Anti	5~400Hz/random operating
Size	172x107x54 (LxWxH)
Power supply	DC_12V Single power supply
Installation	Desktop or wall installation
Material	Surface sandblasting oxidation process (black)
