Name:
|
DC/DC DC/ATX POWER(FOX-12P80A) |
|
Spec:
|
FOX-12P80A |
|
Memo:
|
dc-dc atx power supplies |
|
Class:
|
Computer parts |

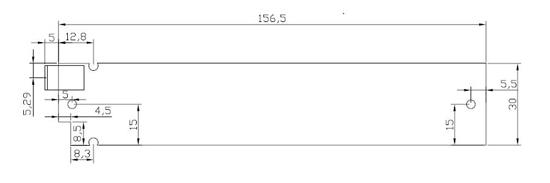

◆Dimensions(mm): L156x W30xH17
◆DC Input: 12V (11.4~12.6)
◆DC Output : 87W
◆Efficiency: >= 92%
◆Operating Temperature: 0℃ ~ 40℃
◆Storage Temperature: -20℃ ~ 80℃
Output Voltage Regulation
|
Output
|
Minimum
(V)
|
Maximum(V)
|
Min Load
(A)
|
Max Load
(A)
|
Ripple& Noise
(mV)
|
|
+12V
|
11.40
|
12.60
|
0
|
|
120MAX
|
|
+5V
|
4.75
|
5.25
|
0
|
|
50MAX
|
|
-12V
|
-10.80
|
-13.20
|
0
|
0.1
|
120MAX
|
|
+3.3V
|
3.14
|
3.47
|
0
|
|
50MAX
|
|
+5VSB
|
4.75
|
5.25
|
0
|
1
|
50MAX
|
Application:Mini ITX ,POS System,bank System,intelligence surveillance, broadcast television networks, communications systems, vehicle monitoring system
