ITX-D81_D6L
|
LGA1150
|
SO DDR3
|
Intel HD
|
1* RTL8111E
|
dual 24bit
|
8
|
6
|
COM3
|
DC 12V -19V
|
|
ITX-D81_D2L
|
LGA1150
|
SO DDR3
|
Intel HD
|
1* RTL8111E
|
dual 24bit
|
8
|
2
|
NO
|
DC 12V -19V
|
Industrial mainboard H81 Lga 1150 socket AIO Mini PC Motherboard
窗体顶端
Min.Order Quantity:1 Piece/Pieces
Supply Ability:2000 Piece/Pieces per Month
Port:Shenzhen
Payment Terms:L/C,T/T,Western Union,MoneyGram,PayPal / Alipay Escrow

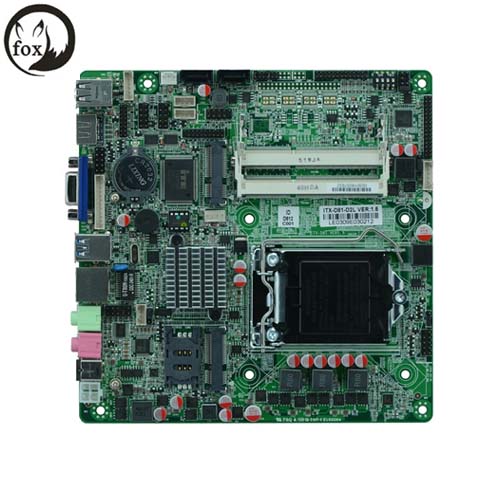

6*COM Intel H81 LGA1150 Ultra Thin ITX Motherboard with LVDS
Industrial mainboard i5 i7 ,Lga 1150 socket AIO Mini PC Motherboard
· Support Intel®LGA1150 Socket Core i3/i5/i7/Pentium Processor
· Using Intel® H81 Chipset
· Support SO-DDRIII 1333/1066 MHz,up to 8GB
· Support VGA/LVDS/HDMI synchronous/asynchronous display 1080P
· 1* RTL8111E 10/100/1000Mbps Ethernet,Support Wake on LAN
· 6* RS232, COM3 supports RS422/485
|
Model NO.
|
ITX-D81_D6L VER:1.5
|
|
CPU
|
LGA1150 Intel® Core™ i3/i5/i7 32nm/22nm Processor
|
|
Chipset
|
Intel® H81 Chipset
|
|
Memory
|
2* dual channel SO DDRIII 1333/1066MHz, Single memory slot supports Max. 8GB
|
|
Graphics
|
Intel® HD Graphics
|
|
|
support VGA/HDMI/LVDS display output,
LVDS supports dual 24bit , LVDS support the voltage of dc 12V screen, default is 3.3V .
|
|
|
support synchronous/asynchronous display
|
|
Expansion Slots
|
1* Mini-PCIE, support WIFI
|
|
LAN
|
1* RTL8111E 10/100/1000Mbps Ethernet,Support Wake-on-LAN and PXE function
|
|
Storage
|
2* SATA (SATA1 is SATA3 ,transfer speed up to 6Gbps)
|
|
|
1* MSATA, support SSD 6Gbps , transfer speed up to 6Gbps
|
|
Audio
|
Integrated Realtek HD ALC662 for 6-Channel output,
support Power amplifier , Recommend to use 3Ω2W speaker
|
|
|
Support MIC/Line-out
|
|

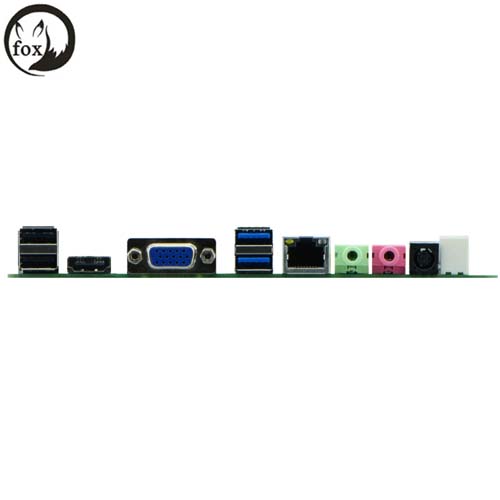

Rear I/O
|
2* USB 2.0
2* USB3.0
|
|
|
1* HDMI
|
|
|
1* VGA
|
|
|
1* RJ-45 LAN
|
|
|
2* AUDIO I/O (MIC and Line-out)
|
|
|
1* DC12-19V 19V input interface
|
|
Internal I/O
|
1* LVDS 2*15pin , Support Dual Chanel 24bit LCD( dual 8)
|
|
|
1* JVGA 12pin , with the same signal to DB15 VGA
|
|
|
1* JHDMI , 2*8pin , support dual HDMI display output
|
|
|
6* COM, COM3 supports RS422/485
|
|
|
1* LPT ,2*13 pin
|
|
|
2* USB 2.0, 2*5 pin
2* USB 3.0 , 2*10 pin
|
|
|
1* KB/MS ,6*pin
|
|
|
1* AUDIO pin (Front Audio interface 2*5pin)
|
|
|
1* Amplifier interface, can be directly connected speaker output
|
|
|
1* FP1 (2*5pin ,Front panel buttons and LED indicator connector)
|
|
|
1* ATX 4 pin ,Can be used as input and output 19V power connector)
|
|
|
1* LVDS INVERTER(1*6pin)
|
|
|
2* PWROUT (HDD power connector)
|
|
Fan interface
|
1* CPUFAN 4pin 1* SYSFAN 3pin
|
|
GPIO
|
1* GPIO (Support 4-way GPIO function)
|
|
BIOS
|
32MB SMT Flash ROM
|
|
Watchdog
|
Support hardware reset function (L256, 0~255 seconds)
|
|
Power Input
|
DC 12V -19V Single power supply
|
|
Operating Temp.
|
-10°C~60°C
|
|
Storage Temp.
|
-20°C~70°C
|
|
Humidity
|
5%-95%(relative humidity; non-condensing)
|
|
Dimension
|
170mm x 170mm
|
H81 all in one mainboard Accessory: 1*I/O panel ;1*CD driver;1*SATA data cable;1*SATA power cable
FOX ETECH - Intel H81 LGA1150 Ultra Thin All In One Industrial Mainboard
FOX ETECH also provide the service of custom design to meet your special requirement.
6*COM / Dual 24bits LVDS / Or B75 LGA1155 similar products are available too. Welcome OEM/ODM order.
Major products and services: Industrial Mini -ITX Motherboard, All In One Mainboard , 3.5’SBC , NVR Motherboard ,Firewall motherboard and Network security , Embedded
BOX PC ,HTPC .
If you are interested in our products or have any question, feel free to contact
me to get latest price.Thank you!
