55inch splicing LED screen, video wall

55inch splicing LED screen, video wall 55inch splicing LED screen, video wall 55inch splicing LED screen, video wall 55inch splicing LED screen, video wall
Product name : 55inch splicing LED screen, video wall
Item : FX5501VW
Details :


Product Features:

full hardware architecture, no CPU and operating system;

multi-bus parallel processing, powerful processing;

start time is less than 8 seconds, start quickly;

No virus infection risk, good security;

inherited the multi-channel video signal types: HDMI, DVI, VGA, CVBS (composite video);

composite video can ring out;

embedded 3D video bright color separation circuit unit;

embedded 3D progressive processing and frame rate normal conversion circuit unit;

embedded 3D digital signal noise reduction unit;

unit can support to drive to 1920 × 1080 LCD screen;

RS232 remote control, each unit can ring out;

24 hours a day to work;

easy to operate, with Bin Jia large screen control software can be flexible to operate the system;

open the underlying communication protocol, user-friendly flexible use of third-party control system or self-compiled software to build large-screen engineering system.

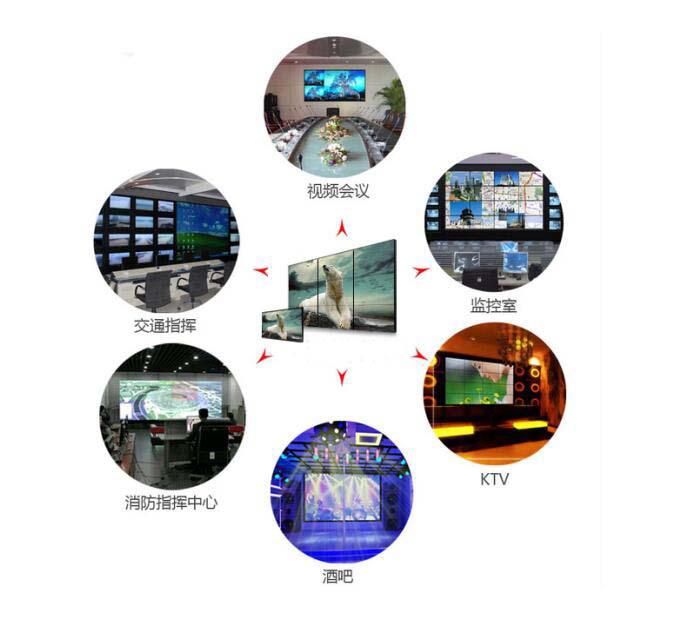

Application areas:

LCD large screen splicing display system is mainly used in military command and control center, government agencies, corporate multimedia video conferencing display system, traffic management command center, urban management emergency command center, production scheduling control center, mining safety industry monitoring center, Hotel, communication information display system, financial securities information display system, public security fire, weather, maritime flood control command center, brand store image display system and other fields.



Products details :

Full size

55inch 4*4,3*3

Model

FX5501VW







Panel

Panel type

Samsung 55inch  LED backlight

Display size

1210(W)*680.8(H)(mm)

Dimensions

1213.53*684.3*118.1mm

Display ratio

169

Backlight type

LED

resolution

1920*1080

color

16.7M(8bit)

brightness

500cd/m2

Contrast

4500:1

Viewing angle

178°

Response time

8ms

Life time

60000hours

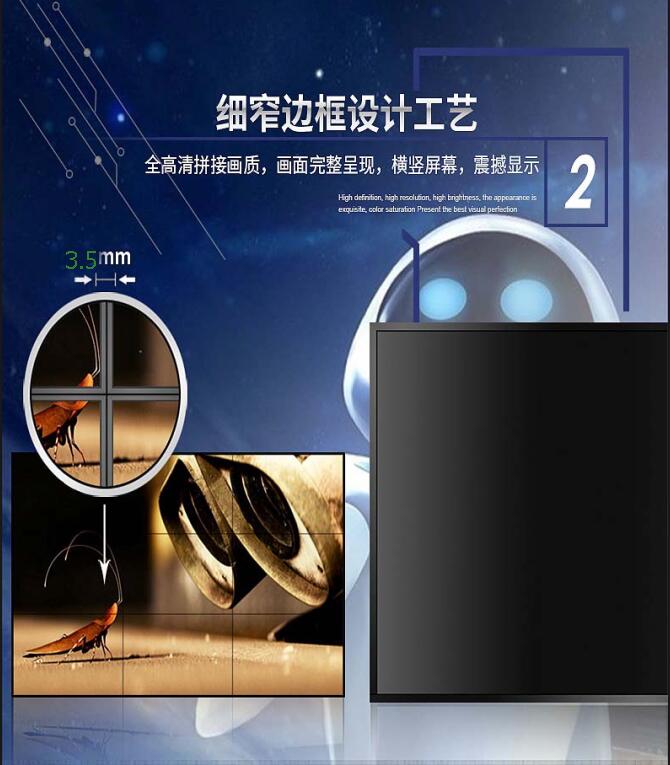

Physical patchwork

3.5mm

Function

Color system

PAL/NTSC/SECAM

Menu language

Simplified Chinese, Traditional Chinese, English Multi-language

Operating mode

 remote control



I/O ports

VGA input

1

DVI input

1

HDMI input

1

Composite video input (AV)

1(BNC*1)

Composite video output (AV)

1(BNC*1)



Control signal input

RS232 * 1 upgrade, USB upgrade, infrared access conversion interface

Control signal input

RS232*2RJ45-8 interface

Control signal ring out

RS232*2RJ45-8 interface

power

Power in

AC100-240V,50 /60HZ

Power consumption

220W

Working environment

Working temperature

0℃—50

Storage temperature

-20-60

Working / storage humidity

20%-80%

installation

cabinet / bracket

customization

Install accessories

customization

Installation method

 cabinet, wall, bracket, building blocks, embedded, mobile and so on

others

 Products Dimensions

1335.9(W)*754.2(H)*175mm

Case Color

black

Case material

metal

Certification

ISO9001,3C......

N.W

30KG
