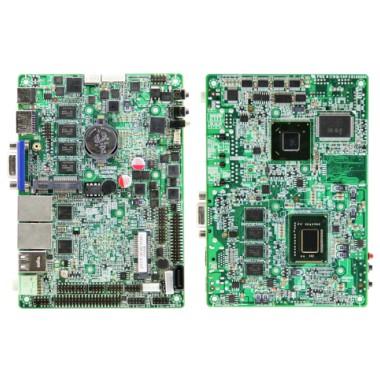

3.5inch Motherboard |
|
Product name : 3.5inch Motherboard |
Item : EPIC-N80 |
Details : |
Name:
|
3.5inch Motherboard(EPIC-N80) |
Spec:
|
EPIC-N80 |
Memo:
|
Intel Celeron 847/1007/1037(1.1G/1.5G/1.8GHZ) |
Class:
|
Mini-ITX Motherboards |
Ultra thin High performance Intel 1037u Embedded Fanless Motherboard 3.5inch Onboard 2G memory and Support Wifi/3G/
Port:
|
shenzhen
|
Minimum Order Quantity:
|
1 Piece/Pieces
|
Supply Ability:
|
5000 Piece/Pieces per Month
|
Payment Terms:
|
L/C,T/T,Western Union,MoneyGram,paypal/escrow
|
Packaging & Delivery
Packaging Details:
|
OEM
|
Delivery Detail:
|
within 1~2 working days for sample
|
Specifications
Onboard Intel Celeron 1037 Dual Core processor;
Embedded DDR3 2G memory;
2*Mini PCIE,VGA+HDMI+LVDS
Onboard DDR3 2G 3.5inch Embedded Fanless Motherboard Supporting WIFI or 3G
Feature
- Support Intel Celeron 1037 dual-core processor (1.8 GHZ)
- Intel NM70 high-speed chipset
- Integrated Intel HD Graphics core Graphics,providing VGA,HDMI,LVDS display output
- Onboard DDR3 2gb,max up to 4gb
- Provide 2*Mini - PCIE slots,support SSD/wireless WIFI / 3g module
- Provide 6*RS232 serial port,including COM2 support RS422/485 model
- Support 2*Intel 82583V support WOL
- Integration Realtek ALC662 6 channel high-fidelity audio controller
Specification
CPU |
Intel Celeron 1037 Dual Core processor 1.8GHZ TDP 17W |
Chipset |
Intel NM70 high speed chipset |
Memory |
Onboard DDR3 2G,max up to 4GB |
Display |
Integrated Intel HD Graphics |
|
1*VGA,1*HDMI,1*LVDS,support dual channel 24 bits LVDS |
|
Support HDMI/VGA |
|
Support LVDS/VGA |
|
Support LVDS/HDMI |
Expansion slot |
1*Mini-PCIE,support WIFI/3G |
|
1*MSATA,support SSD,WIFI,SSD speed up to 600MB/s |
Audio |
Onboard Realtek ALC662 6 High fidelity audio channel controller,support MIC Line-out |
Storage |
1* SATAII,speed up to 300MB/s |
|
2* JSATAII SATA |
Network |
2* intel 82583V,support WOL |

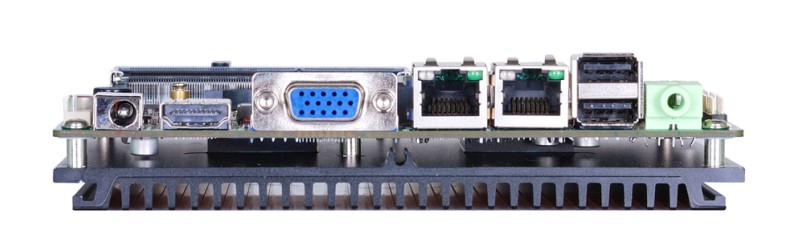

Rear I /O |
1* 12V DC_JACK |
|
1* HDMI |
|
1* VGA |
|
2* RJ-45 |
|
2* USB 2.0 |
|
1* Line Out |
Built-in I/O |
1* JVGA1(2*5pin)and DB15 not connection at the same time |
|
1* LVDS(2*15pin),support dual channel 24bitLCD(dual 8) |
|
1* LVDS INVERTER |
|
1* Mini-PCIE,support 3G/WIFI |
|
1* MSATA,SSD/WIFI |
|
1* SIM |
|
1* GPIO |
|
4* USB 2.0 |
|
1* PWROUT |
|
1* AUDIO |
|
6* RS232,COM2 support 485/422 |
|
1* JLPC 2*6pin |
|
1* PS/2 1*6Pin |
|
2* JSATA2 1*5pin |
|
1* CPUFAN 1* SYSFAN |
|
1* FP1(2*5 pin function button and the indicator light on the front panel interface) |
BIOS |
AMI 32MB Flash ROM |
Watchdog Timer |
Support hardware reset functions (level 256, 0 ~ 255 seconds) |
Power supply |
DC_12V |
Working Temperature |
-10°C~60°C |
Working Humidity |
0-95% |
Size |
148mm x 102mm |
|
|
