3.5 inch Embedded SBC

3.5 inch Embedded SBC 3.5 inch Embedded SBC 3.5 inch Embedded SBC
Product name : 3.5 inch Embedded SBC
Item : EPIC-N80_I3
Details :

Model Process Memory Graphics Card Network Audio LVDS USB COM RS485/RS422 Power Input
EPIC-N80_I3 I3 3217U/1.8GHZ Onboard 4GB Intel HD 2* 82583V ALC662 dual 24bit 6 6 COM2 DC/12V
EPIC-N80L_4G 1037U/1.80G Onboard 4GB Intel HD 2* 82583V ALC662 dual 24bit 6 6 COM2 DC/12V

3.5' Single Board Computer I3 SBC Embeddded Motherboard


Packaging & Delivery

Packaging Details: Netural Carton Box
Delivery Detail: TBA, based on stock condition and order placed

3.5" Intel I3 MINI Computer Embedded Motherboard

3.5'  Single Board Computer I3 SBC Embeddded Motherboard

Model NO.

EPIC-N80_I3 VER:1.2

CPU

Intel® i3 3217U(1.8G) dual-core CPU

Chipset

Intel® NM70 Chipset

Memory

Integrated DDR3 4GB Memory , max up to on-board 8G

Graphics

Built-in Intel® HD 4000  Graphics



Support VGA / HDMI / LVDS display output



LVDS supports dual 24bit and synchronous/asynchronous display

Expansion Slots

1* Mini-PCIE (Support WIFI/3G)



1* MSATA, support SSD(Speed can be 6Gbps ) / WIFI

LAN

2* Intel 82583V 10/100/1000Mbps Ethernet,Support Wake-on-LAN

Storage

1* SATAII 300MB/s



1* JSATAII pin, Can be transferred to SATA disk

Audio

Integrated Realtek HD ALC662 for 6-Channel output , support MIC & Line-out

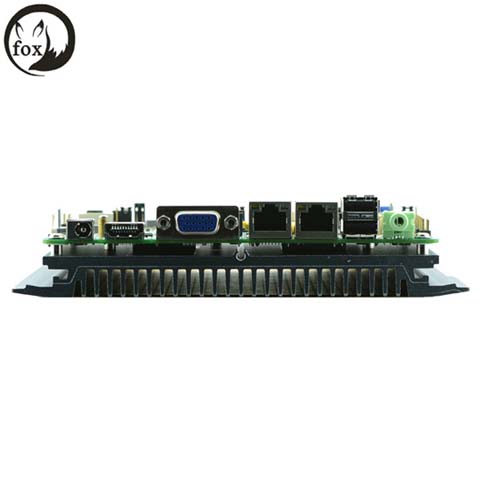

Rear I/O

1* 12V DC_JACK input



1* HDMI



1* VGA



2* RJ-45 LAN



2* USB 2.0



1* Line Out(Green)



1* POWER,1* RESET,1* LED1(POWERLED/HDDLED)(Front panel)

Internal I/O

1* LVDS 2*15pin



1* JVGA1 2*5pin



6* RS232 COM, COM2 supports RS485/422



1* JLPC 2*6pin



4* USB 2.0



1* PS/2 1*6Pin



1* AUDIO pin (Front Audio interface 2*5pin)



1* FP1 (2*5pin Front panel buttons and LED connected)



1* SIM card



2* JSATA2 1*5pin



1* PWROUT (Hard drive power connector)



1* LVDS INVERTER (Back-light power supply interface)

Fan interface

1* CPUFAN 3pin

GPIO

1* GPIO (Support 4-way GPIO function)

BIOS

AMI 32MB Flash ROM

Watchdog

Support hardware reset function (L256, 0~255 seconds)

Power Input

DC_12VSingle power supply

Operating Temp.

-10°C~60°C

Storage Temp.

-20°C~70°C

Humidity

0%-95%(relative humidity; non-condensing)

Dimension

148mm x 102mm

Heat sinks size

175mm x 155mm
