product description

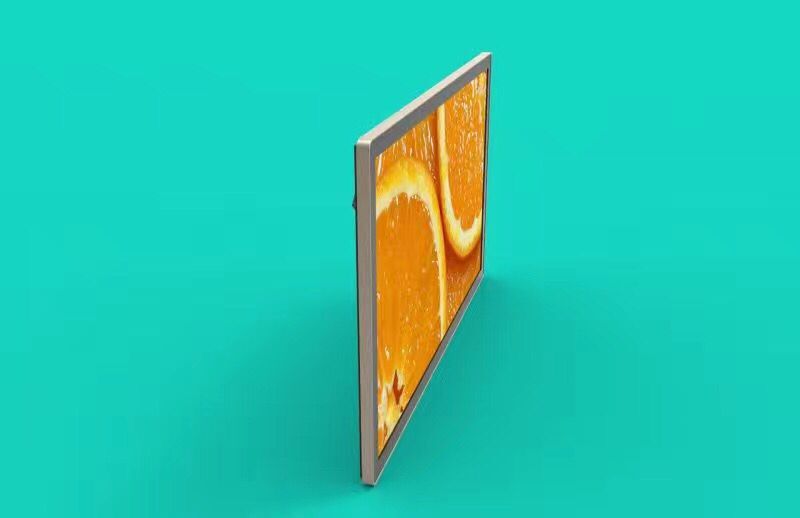

l product size: 32inch

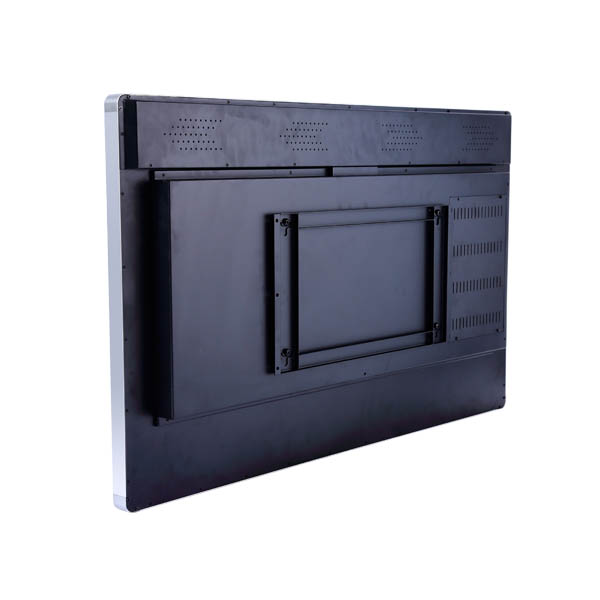

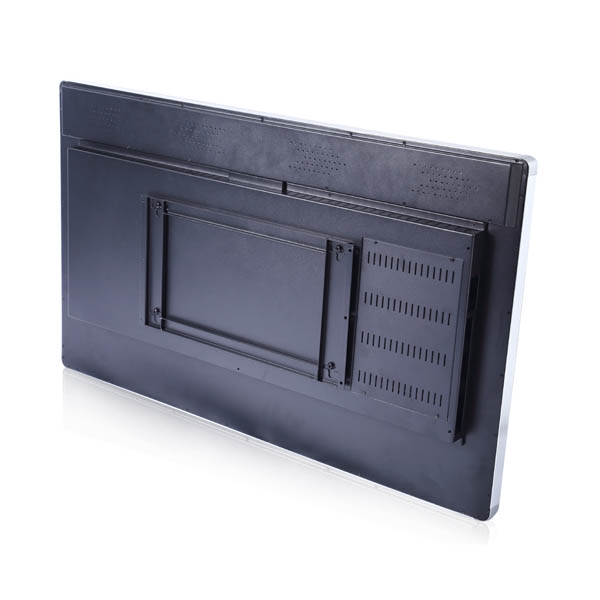

l Case cover:the side frame is made of aluminum alloy with surface drawing oxidation process, front is 3mm anti-glare chemical glass,rear cover made with abrasive stamping;all are standard.

l Using industrial LCD panel, full HD, full view IPS screen;

l Using industrial-grade substrate power supply, support 90-263V, 50 ~ 60HZ AC input;

l Using professional display driver module, dynamic color correction, color balance, soft, anti-glare treatment;

l Support variety of audio and video decoding, support HTML pages, support FLASH playback, support network information release;

l support remote operation, support multiple languages, support horizontal screen, vertical screen rotation display;

l applications: stores, buildings, urban complex, etc .;

l Support IR/capacitive touch, support third-party Android APP application.

Environmental requirements

Humidity

20 - 80% (R.H., no condensation)

Temperature

0 - 40 ° C

X86 windows version

Screen

IPS LED

Resolution

1920*1080

Ratio

16:9

View angle

178°，178°

contrast

1000:1

Color gamut

100%sRGB

CPU

Intel Cor I3 (optional J1900, i5,i7 CPU)

GPU

Integrated HD graphic card

RAM

DDRIV /4  4G, (Support 8G)

Storage

HDD500G or SSD120G( support HDD1t/SSD240G)

Touch(optional)

Support IR or capacitive touch

I/O port

HDMI 1.4,  support 1080P output, USB *4,audio,RJ45,VGA,MIC

speaker

2x5W （8Ω）

Network

RJ45 100 / 1000M network adaptive; WIFI IEEE 802.11b / g / n

OS

Support WIN 7 / WIN8 / WIN10

Play mode

support horizontal, vertical screen playback; automatically looping play

Program updates

Cloud network / LAN online update, local playback

Accessory

Power cable, hand wall bracket, menu,screw

warranty

3years ( screen just with 1 year)
