10.4 inch Industrial Tablet PC |
|
|
| Product name : 10.4 inch Industrial Tablet PC |
| Item : PPC-104-N85 |
| Details : |
Order Information:
|
No.
|
Mode
|
Processor
|
Motherboard
|
Memory
|
HDD
|
LAN
|
USB
|
COM
|
WIFI
|
Power
|
System
|
|
1
|
PPC-104-N85
|
N2930/1.83G
|
EPIC-N85
|
Onboard 4G
|
500G
|
2* Intel 82583V
|
4
|
2
|
N/A
|
12V/5A
|
WIN7
|
PPC-104-N85

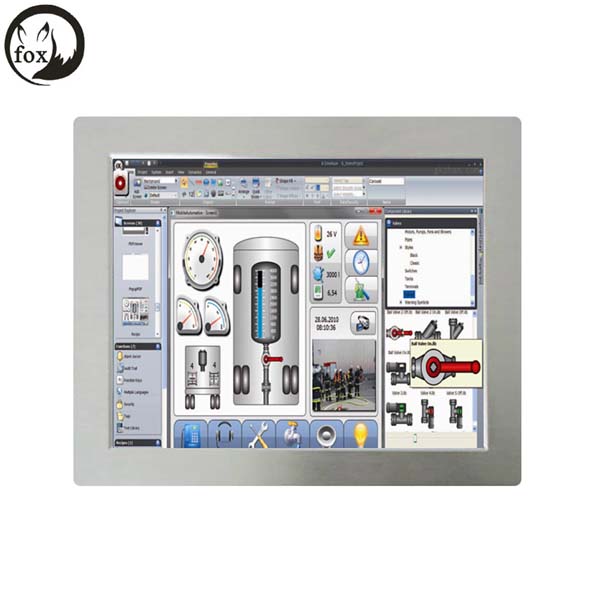

♦ 10.4 inch，with touch screen
♦ Fanless heat sink structure
♦ AI alloy chassis, compact structure, flexible installation
♦ 1xVGA/1xHDMI
♦ 2*Intel 82583VGigabit Ethernet port ,supports Wake On LAN

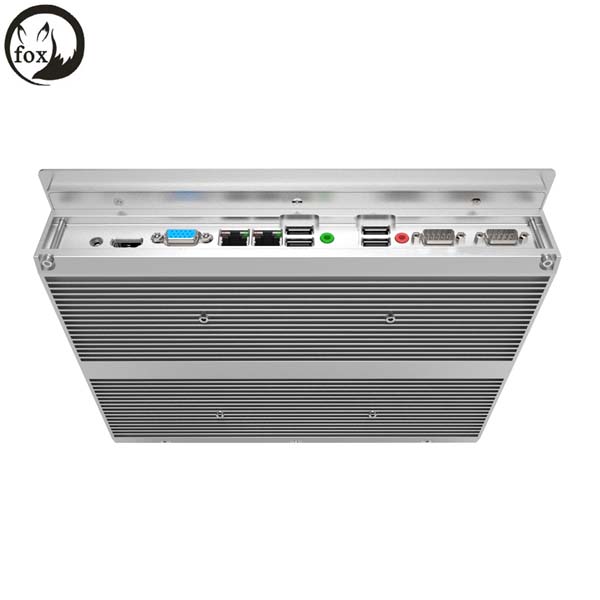

♦RichI/O:2xCOM,1xVGA,2xLan,1xAduio, 4xUSB,1xHMDI
|
Chassis
|
Color
|
Silver
|
| |
Size
|
268mm*210mm*50mm (L*W*H)
|
| |
Structure
|
AI allay Fanless structure
|
| |
Material
|
Al allay+ galvanized steel sheet
|
|
Motherboard
|
size
|
10.4inch
|
| |
resolution
|
800*600 with touch screen
|
| |
Model No.
|
EPIC-N85
|
| |
Processor
|
Base on BAY Trail platform N2930 processor
|
|
Storage
|
Graphics
|
Intel®HD Graphics
|
| |
Memory
|
Onboard DDR3L 4G RAM
|
| |
2.5’ HDD
|
N/A
|
|
System Feature
|
CF
|
N/A
|
| |
SSD
|
64G/128G(optional)
|
| |
Ethernet
|
2* Lan（Intel 82583V）
|
| |
USB
|
4* USB2.0
|
| |
Serial Port
|
2* COM,
|
| |
Display
|
1* VGA/1*HDMI
|
| |
Audio
|
1* Line-out,1*MIC
|
| |
Indicator
|
1 for power state, 1 for HDD
|
| |
System Control
|
Power switch
|
|
Power
|
Wireless
|
2* WIFI/3G SMA antenna (optional)
|
|
Reliability
|
Power
|
12V/5A(8V~36V input/output power connector supported)
|
| |
Installation
|
Desktop or wall-mounted
|
| |
Operating T
|
0℃～45℃
|
| |
Storage T
|
-20℃～70℃
|
| |
Relative humidity
|
0.5g rms/5~500Hz/random operating
|
| |
Vibration
|
0.5g rms/5-500HZ/random/operating
|
|
 |
|
|
