HMDI 6*com 2GB memory industry 12v motherboardIntel QM77/HM77/67 intel i3/i7/i5 core motherboard/
| FOB Price: |
US $ 1 - 328 / Piece | Get Latest Price |
| Port: |
shenzhen |
| Minimum Order Quantity: |
10 Piece/Pieces |
| Supply Ability: |
5000 Piece/Pieces per Week |
| Payment Terms: |
L/C,T/T,Western Union,paypal |
Packaging & Delivery
| Packaging Details: |
carton box (Accessory :1 *COM cable :1*CD driver 1*SATA cable 1*SATA power cable ) |
| Delivery Detail: |
within 3 days in sample order 7-25days in bulk |
Specifications
1.advantech motherboard
2.max resolution: 2048*1536
3.highquality and good price
4.longer lifespan >5years
Specification & description
Intel QM77/HM77/67 intel i3/i7/i5 core motherboard/HMDI 6*com 2GB memory industry motherboard/12v DC
specifications:

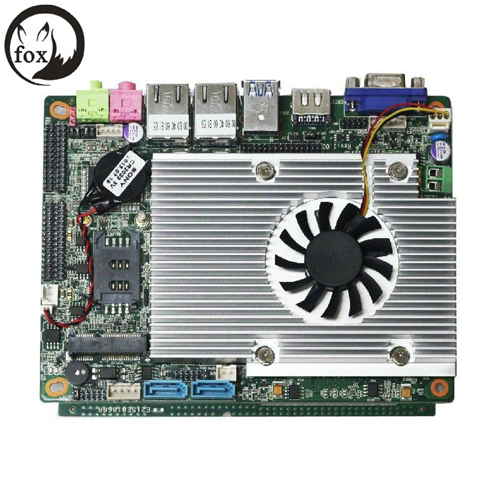

Core i7/i3/i5 industrial motherboard
1.Intel HM67/QM67+Core i7
2.DDR3 max 8GB
3.24bit LVDS/HDMI/VGA 1080P
4.3G,WIFI,2 LAN,mSATA
the other information:
|
Main Features
|
|
Suitable for
|
AD Player;AIO machine; Thin Client; Firewall;Car PC;HTPC;VOD; IPC; POS etc.
|
|
Form Factor
|
3.5 Inch (115mm×155mm×20mm)
|
|
Chipset Manufacturer
|
Intel
|
|
CPU
|
Intel Core G3 Ivy Bridge i3/i5/i7 processors optional ( i3-3110M/ i5-3210M/ i7-3610M)
|
|
Chipset
|
Intel® HM77/QM77 Express Chipset
|
|
L2/L3 Cache
|
L2 Cache:2×256KB;L3 Cache:3MB.CPU integrated
|
|
BIOS
|
AMI EMI 32MB SMT/DIP-SPI Flash ROM
|
|
RAM
|
DDR3 1066/1333/1600MHz memory,SO-DIMM socket,maximum up to 8GB
|
|
Graphics Core
|
Intel HD Graphics 4000 (Integrated)
|
|
Sound
|
Realtek HD ALC662 chipset(Line_out/Mic_in);onboard power amplifier(SPK)
|
|
Network
|
RTL8111EL PCI-E Gigabit Ethernet LAN,support RTL/PXE diskless booting
|
|
Storage
|
2*SATA;1*mSATA
|
|
LVDS
|
Support dual channel 24bit LVDS connector;Resolution maximum:1920*1200
|
|
USB
|

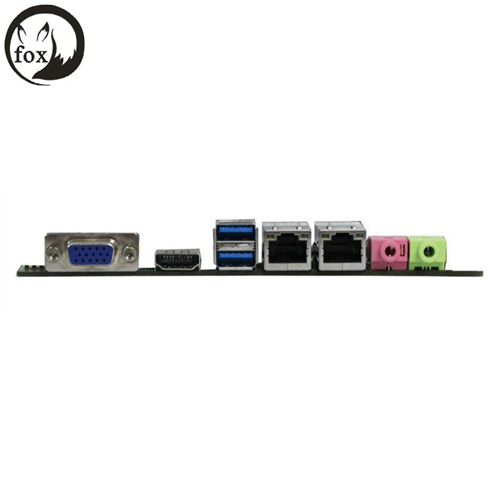

8*USB (2 external-USB3.0;6 from expansion header-USB2.0)
|
|
Expansion Sockets
|
1*Mini SATA socket for SSD;1*Mini-PCIE socket for WIFI/3G;1*SIM card slot for 3G
|
|
Advantages
|
|
1.Embedded high performance industrial motherboard. (2.0cm ultrathin)
2.DDR3 1066/1333/1600MHz memory,SO-DIMM socket maximum up to 4GB.
3.Support WIFI,3G SIM card,dual 1000M RJ45 LAN port,support Mini SATA SSD ,more efficiency.
4.Support power booting/plug and play,Timer-power-on.
5.Support 1080P HDMI resolution maximum up to:1920*1200;Support 24bit dual channel LVDS;VGA resolution maximum up
to:2048*1536.
6.Reliable, High stability, Low noise, low power consumption.Perfectly suitable for AD Player/AIO machine/IPC/VOD/Car PC
/HTPC etc.
|
The Applications / suitable for :
1. all-in-one PC, home entertainment systems, factory automation, information release system.
2.building automation, intelligent transportation system, monitoring system and so on to automotive electronics.
3.digital electronics/advertising billboards (DSA), health care use computer game/game machines.
4.professional, medical, textile machinery, electric power, transportation line POS cash register;
5..On-board memory, high stability, is all kinds of numerical control, automotive, medical, aerospace equipment.
6..industrial automation control, instrumentation, medical equipment, electric power systems.
7..telecommunication, railway transportation, aerospace, military defense of choice.
|
package
|
Retail sample (size)
|
Batch (size)
|
delivery details
|
|
Carton box (20pcs)
|
220*210*75mm
|
510*440*230mm
|
Within 3 days (sample order)
|
|
Carton box (30pcs)
|
220*210*75mm
|
620*400*190mm
|
7-25 days in a bulk
|
The packing and delivery :
>packing details : carton box (Accessory :1 *COM cable :1*CD driver 1*SATA cable 1*SATA power cable )
>delivery details:
Within 3 days (sample order ) 7-25 days in a bulk
Delivery ways :
Small quantity by air highly demand by sea
OEM Service Offered/Design Service Offered/Buyer Label Offered
